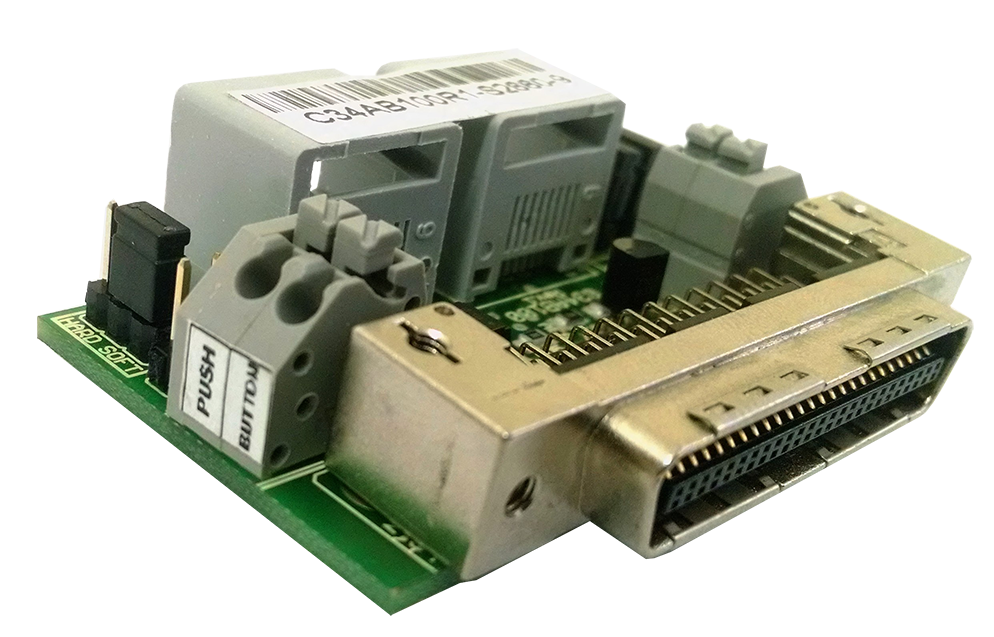

C34AB100 - Board for Driver Allen Bredley Serie 100

C34AB100 - Board for Driver Allen Bredley Serie 100

(0 review)

OVERVIEW

This interfaces board is used for the connection between C82, C76, C86ACORN, C86MASSO, and the Allen - Bradley ULTRA 100 SERVO-DRIVE and Kollmorgen DSM Series

FEATURES

  • CONN MDR PLUG 50 POS RA GOLD connector for Connection of Driver.
  • RJ45 Connector for Axis.
  • Select Jumper for Hard Enable or Soft Enable.
  • Select Jumper for signals Differentials
  • Terminals for external power supply 12VDC or 24VDC
  • Terminals for Alarm Clear
  • Encoder output

Compatible Drivers

  •  Kollmorgen DSM series.
$ 38.88 $ 38.88

  • Connector
Add to cart
Add to wishlist
Connector: MDR 50POS
Documents
User Manual C34AB100 Wiring Sample C34AB-100 Rev1 with Acorn Wiring Sample C34AB-100 Rev1 with C62 Wiring Sample C34AB-100 Rev1 with C76 Wiring Sample C34AB-100 Rev1 with C82 Wiring Sample C34AB-100 Rev1 with HTG5 Wiring Sample C34AB-100 Rev1 with M16D Wiring Sample C34AB100 Rev1 with C76, M16D, C82 and Allen Bradley Serie 100 Wiring Sample C87 Rev1 with Allen Bradley Serie 100 and C78
