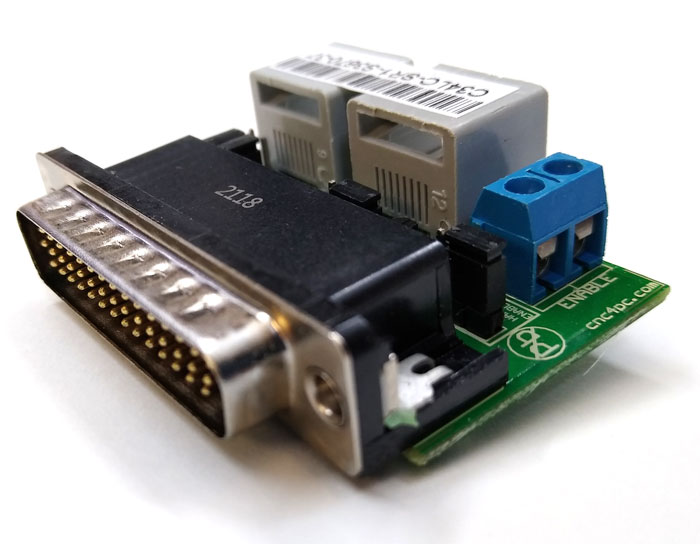

RJ45 Driver Board for Lichuan Series A4 and A6
OVERVIEW
This board interface is used for the connection between C82, C76, C35S, and LICHUAN A4 - A6 Series AC Servo Drive
2.0
FEATURES
• HDM44D connector for Connection of Driver.
• RJ45 Connector for Axis.
• Encoder Output.
• Select Jumper for Hard Enable or Soft Enable.
• Alarm terminal
• Select jumper for signal differentials.
• Terminals for external drive enable push button.
• Select Jumper active Low and active High
