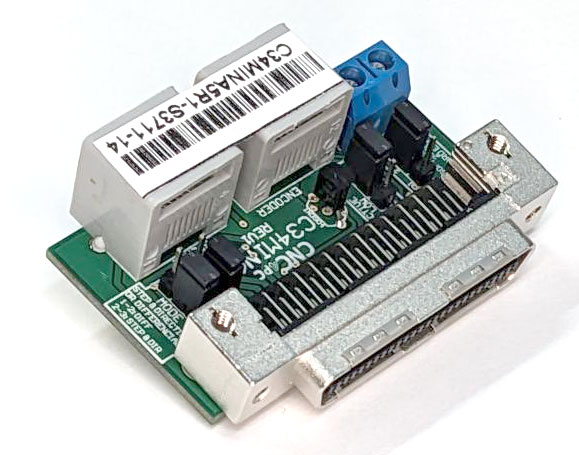

C34MINA5 - Connector Board for Panasonic Minas A5 Series

P

OVERVIEW
This board interface is used for the connection between C82, C76, C35S, C86ACORN, C86MASSO, C86ACCP and the MINAS 5 SERIES AC SERVO DRIVER

FEATURES

• DB50 connector for Driver Connection.
• RJ45 Connector for Axis.
• Encoder Output.
• Alarm terminal
• Select Jumper for Hard Enable or Soft Enable.
• Select jumper for signal differentials.
• Select Jumper active Low and active High
• Terminals for external drive enable push button.
• Power Terminal 24V



Compatible Drivers:
Panasoic MINAS A5Ⅱ/A5 series
