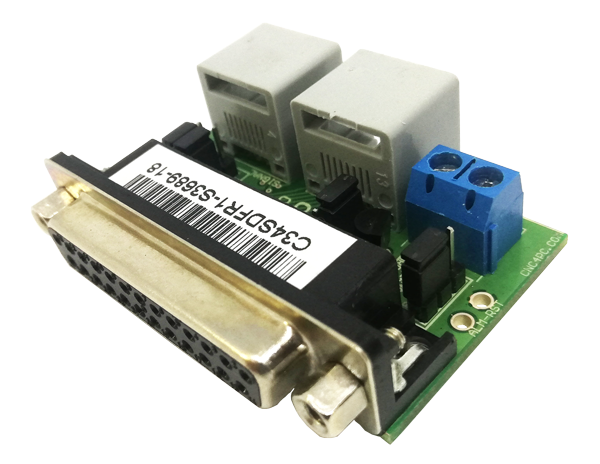

C34SDF Connector board for F-Series
OVERVIEW
This board interface is used for the connection between C82, C76, C86ACORN, y C86MASSO and the F
AC SERVO DRIVER
FEATURES
- DB25 FEMALE connector for Driver Connection.
- RJ45 Connector for Axis.
- Encoder Output.
- Alarm terminal
- Select Jumper for Hard Enable or Soft Enable.
- Select jumper for signal differentials.
- Select Jumper active Low and active High
- Terminals for external drive enable push button.
Compatibility:
- SDF08NK8X SDF Servo Drive
- CNCTOPBAOS from Amazon ASIN B09B75PQ4N
