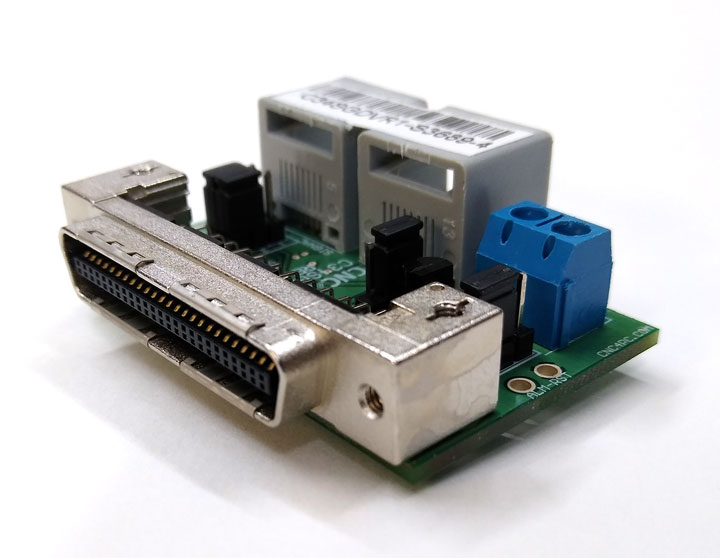

This board interface is used for the connection between C82, C76, M16D, C86MASSO, C86ACORN and the YASKAWA SGDV DRIVER
FEATURES
• DB50 connector for Driver Connection.
• RJ45 Connector for Axis.
• Encoder Output.
• Alarm terminal
• Select Jumper for Hard Enable or Soft Enable.
• Select jumper for signal differentials.
• Select Jumper active Low and active High
• Terminals for external drive enable push button.
• Power Terminal 24V
