C76 - UC300ETH Multifunction Board

https://www.cnc4pc.com/web/image/product.template/4732/image_1920?unique=4657cac

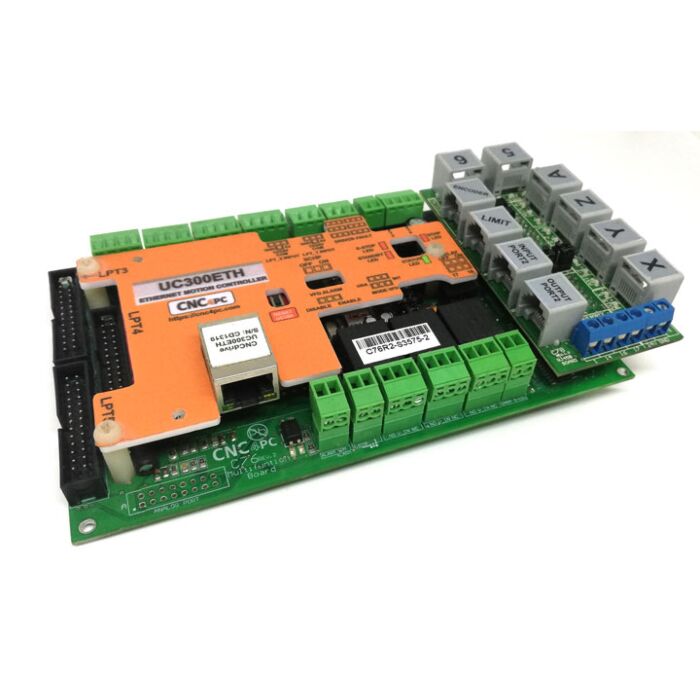

The C76 supplies full access to the UC300ETH board's power. It emulates 5 ports for discrete signals and 1 port for analogs. It allows wiring TTL or industrial-type open-collector inputs and outputs.

$ 181.44 181.44 USD $ 181.44

Not Available For Sale

    This combination does not exist.

    Contact Us

    OVERVIEW

    The C76 supplies full access to the power of the UC300ETH board.  It emulates 5 ports for discrete signals and a port for analogs.  It allows wiring TTL or industrial-type Open Collector inputs and outputs.

    FEATURES

    • Designed for UC300ETH motion controller.
    • 3 Expansion Ports
    • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
    • Monitors E-Stop, Safety Charge Pump, Driver Fault, and VFD Fault.
    • It is compatible with family of C34 connector boards  that allow quickly connecting to popular drives connecting not just the step and direction signals, but also the fault and enable signals.
    • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).  If tied to pin 17 The relay will remain active while the system is active, making it ideal to control the power to the system.
    • Independent Optoisolation Circuits for each port.
    • Power terminal (10-30VDC).  This can power the entire logic of the system.
    • Outputs +3.3vdc at 24mA TTL.
    • Status LEDs on all inputs connections.
    • 18 inputs ports.
    • Flexible Driver Connection.
    • Analog I/O port pinout.
