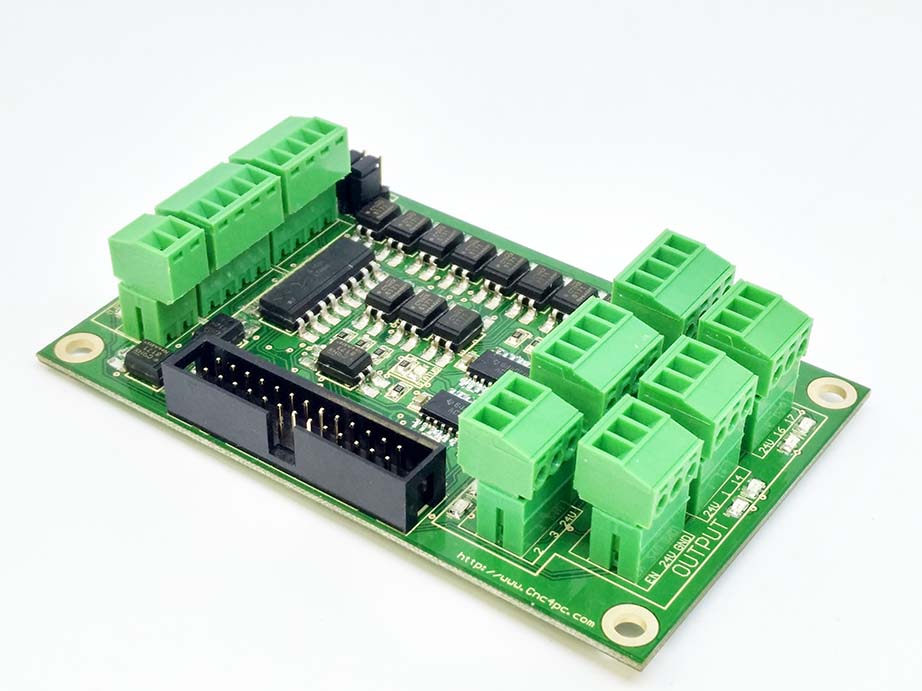

Open Collector Breakout Board
OVERVIEW
This card provides an easy way to connect your inputs and outputs from your port using an LPH26pin Ribbon Cable or parallel port. Provides terminals for connections and condition signals for use in CNC applications.
FEATURES
- Terminal Block for all I/Os.
- Expansion port for Mother Board. Connect the C76 or ESS expansion board.
- Open collector Outputs pins optoisolated 2, 3, 4, 5, 6, 7, 8, 9, 1, 14, 16, 17.
- Input pins 10, 11, 12, 13, 15.
- Terminal Block input with close by ground or +5VDC connections, COM and outputs with + 24VDC and ground
- Screw-On connections for all terminals. You only have to screw-on the wires to make all your connections.
- Status LEDs for enable.
- Fully Optoisolated Inputs and Outputs.
- External Enable Pin
The C79 and C80 are sister boards. The C79 uses pins 2-9 as inputs and the C80 uses pins 2-9 as outputs.
- C79 Pins 2-9 = Inputs.
- C80 Pins 2-9 = Outputs.
