OVERVIEW

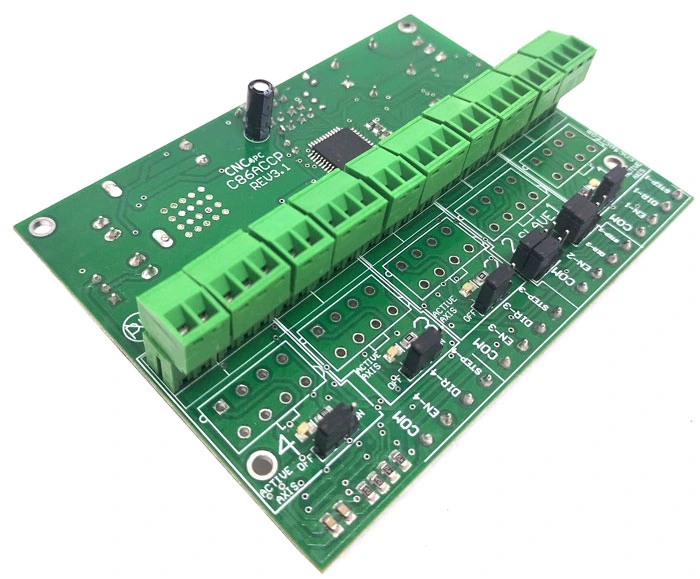

This board interface is used for the connection between Acorn CNC or Acorn SIX and the
CLEARPATH SERVO DRIVE.
2.0
FEATURES
• Enable and disable the drives.
• Splits Step and Direction signals from axis X or Y to allow wiring an additional
axis using the same signals.
• The board can be activated and start monitoring for a driver fault using the
axis enable or NO_FAULT signal.
• Electromechanical relay reflects the ACTIVE / FAULT Status of a servo.
• Power terminal (24VDC).
• Status LEDs for fault axis and relay status.
• CONMOLEX 8P for driver CLEARPATH.
Optional
• Pluggable Screw-On Terminals
