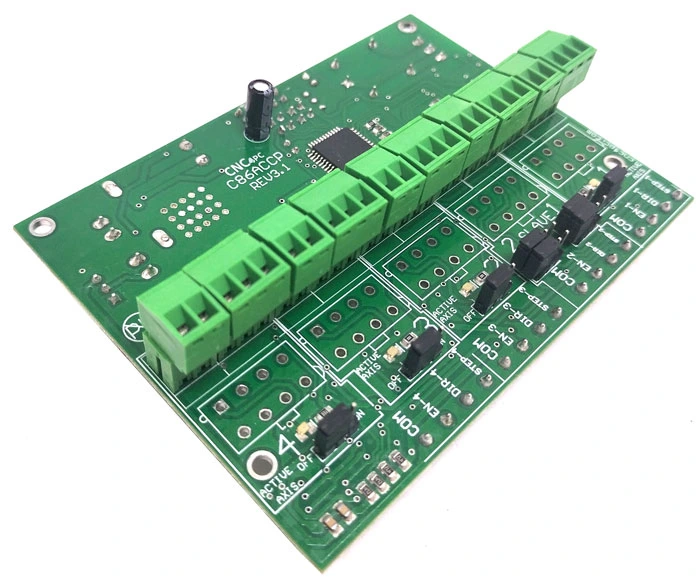

C86ACCP Clearpath Connector Board for the Acorn / Acorn SIX Controller
OVERVIEW
This board interface is used for the connection between Acorn CNC or Acorn SIX and the CLEARPATH SERVO DRIVE. 2.0
FEATURES
• Enable and disable the drives.
• Splits Step and Direction signals from axis X or Y to allow wiring an additional axis using the same signals. • The board can be activated and start monitoring for a driver fault using the axis enable or NO_FAULT signal.
• Electromechanical relay reflects the ACTIVE / FAULT Status of a servo.
• Power terminal (24VDC).
• Status LEDs for fault axis and relay status.
• CONMOLEX 8P for driver CLEARPATH. Optional
• Pluggable Screw-On Terminals
