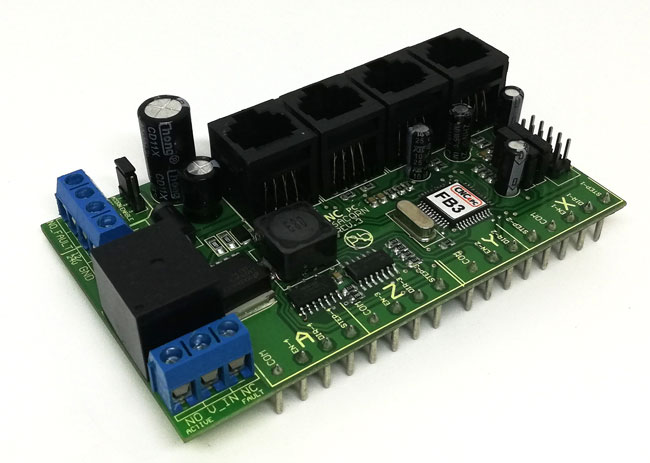

C86Acorn Connector Board for the Acorn Controller

 OVERVIEW

This board interface is used for the connection between Acorn CNC and C34 Board.


 FEATURES

• Enable and disable the drives.

• RJ45 connectors for the axis.

• Electromechanical relay reflects the ACTIVE / FAULT Status of a servo.

• Power terminal (12VDC / 24VDC).

• Status LEDs for fault axis and relay status.
