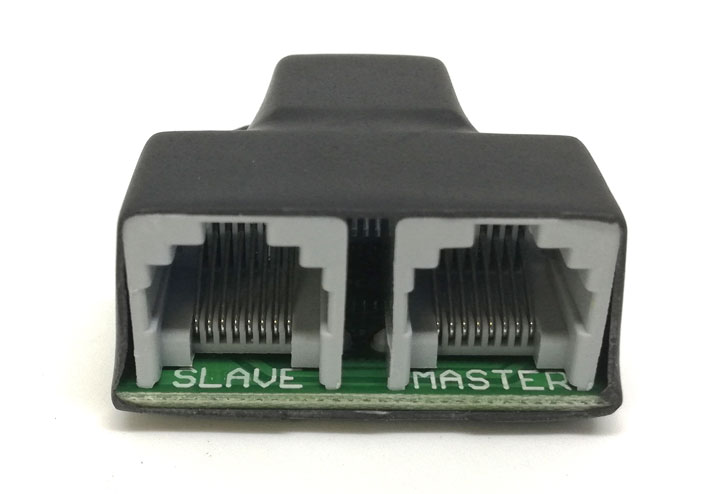

C88 RJ45 Split Axis Board
OVERVIEW
This Board allows slaving an axis at hardware level by splitting the signals of one axis to allow connecting two axes.
FEATURES
Splits Step and Direction signals from the axis to allow wiring an additional axis using the same signals.
It also connects Fault and Enable Signals.
Has a jumper to allow reversing the direction of the slave axis.
Simple and straightforward wiring using standard CAT5/6 cables.
Compatible with all CNC4PC breakout boards using RJ45 for axis connections.
