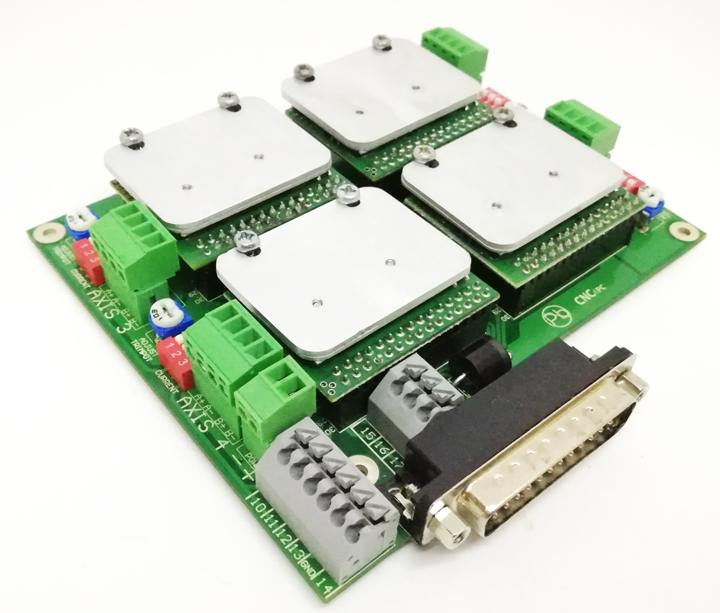

Board Connection ACORN CNC and GECKO Driver G250X

OVERVIEW

This board interface is used for the connection between ACORN CNC and Gecko G250X Rev.3

FEATURES

• DB25 female for DIRECT CONNECTION TO CENTROID ACORN'S DB25.
• Support up to 4 AXIS of stepper drivers. User installable and replaceable
• Trim pot for adjusting power.
• DIP switch current setting, up to 3.5A
• Pluggable Screw-On
• I/O
