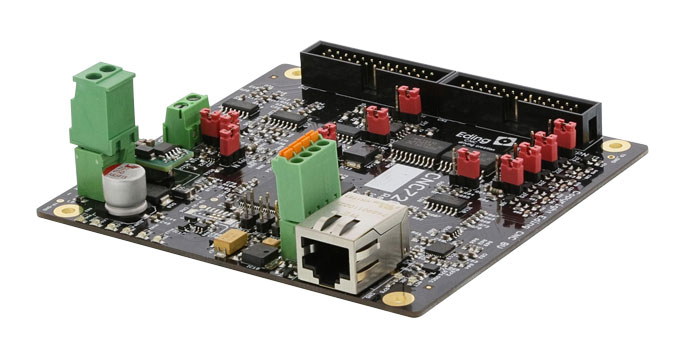

CNC720 CNC Motion Controller

OVERVIEW

EDING-CNC is a 4 axis CNC-Controller including software to drive a cnc-machine with your PC. This Controller communicates with the Ethernet Port of your PC.

Technical data:

• 4 axis CNC controller
• 400kHz stepfrequency
• Ethernet interface
• s-curve motion control

Outputs:

• - 4x step/direction/enable/enable open collector (400 kHz)
• - AUX (open collector)
• - PWM (open collector) / 0-10V
• - System ready
• - No E-STOP (open collector)
• - Tool
• - 2x Cool
• - Run
• - Pause
• - Charge pump
• - RS485 (Modbus RT)

Inputs:

• Handwheel (A/B)
• 2x Analogue
• 4x Home
• E-stop
• Probe / Tool sensor
• Spindle sensor
