OVERVIEW:

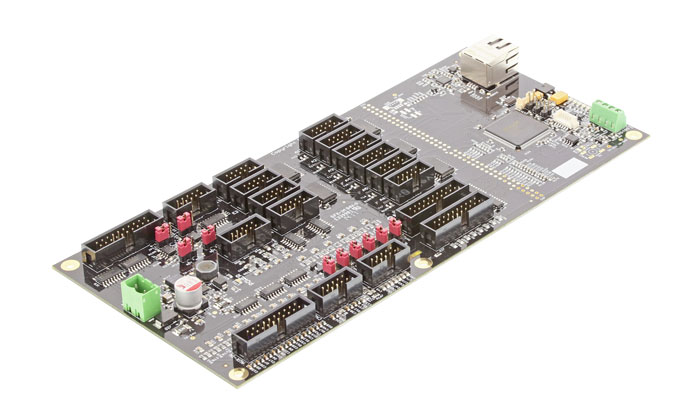

The newest CPU from EdingCNC is a further improvement over the CPU5B. The CNC760 does have a standard ethernet interface and the step frequency is increased to 400khz. The CNC760 also provides more IO options.
Specifications:
- s-curve motion control
- Power supply 24VDC
- 100Mbit Ethernet interface
- Stepfrequently up to 400KHz
- 6x steppermotor control (step/direction)
- 4x 3D extruder control
- 6x Home input (selectable NPN/PNP inputs)
- 8x analogue inputs (12 bits)
- 10 digital inputs
- 10 digital outputs
- 2x analogue 0-10V outputs
- Numerous CNC-specific inputs and outputs
- RS485 interface
- Pendant interface
- Optional DIN rail mounting
- An optional Breakout board is available for easy connection to your setup
- Dimensions 230x107mm
