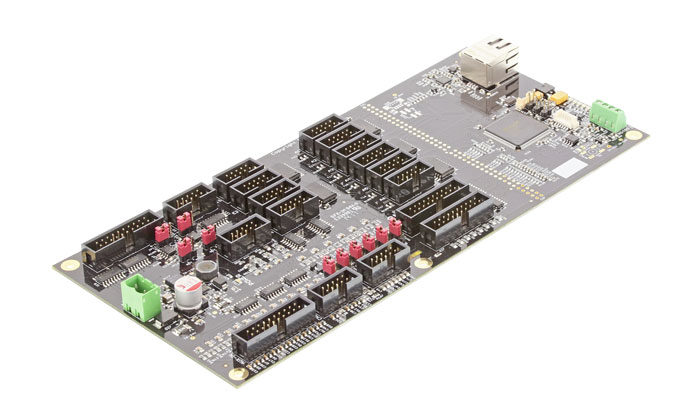

CNC760 6 Axis Motion Controller

OVERVIEW:

The newest CPU from EdingCNC is a further improvement over the CPU5B. The CNC760 does have a standard ethernet interface and the step frequency is increased to 400khz. The CNC760 also provides more IO options.

Specifications:

• s-curve motion control
• Powersupply 24VDC
• 100Mbit ethernet interface
• Stepfrequenty upto 400KHz
• 6x steppermotor control (step/direction)
• 4x 3D extruder control
• 6x Home input (selectable NPN/PNP inputs)
• 8x analogue inputs (12 bits)
• 10 digital inputs
• 10 digital outputs
• 2x analogue 0-10V outputs
• Numerous CNC specific in and outputs
• RS485 interface
• Pendant interface
• Optional DIN rail mounting
• Optional Breakout board available for easy connecting your setup
• Dimensions 230x107mm
