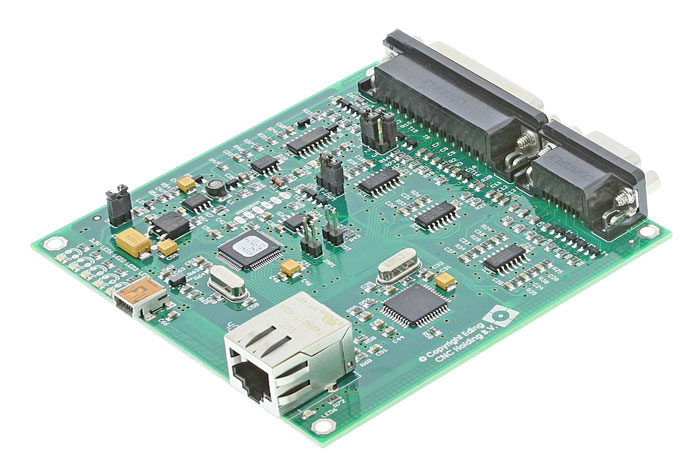

CPU5A4E Motion Controller With Ethernet

CPU5A Economy Series

   Economic, still high performance, 4 axes. USB + Ethernet

• 125 KHz step frequency, 4 axes.
• Card size 100x100mm.
• USB 2.0 connection only used for updating firmware
• 100 Mbit Ethernet connection.
• 5 Status LED's.
• Full  4  axes interpolation.
• 7 Standard CNC outputs.
• 0-10V output for spindle conrol.
• 10 Standard CNC inputs.
• Pendant connection with MPG and 2 switches.
• Hardware safety watchdog.
• SUBD-25 + SUBD-9 connector (female).
• No breakout board needed.
• Powered by USB or +5V external.
• Field upgradable firmware.
• Eding CNC software included.
• Windows 7, Windows 10
• Runs on single core atom PC.
