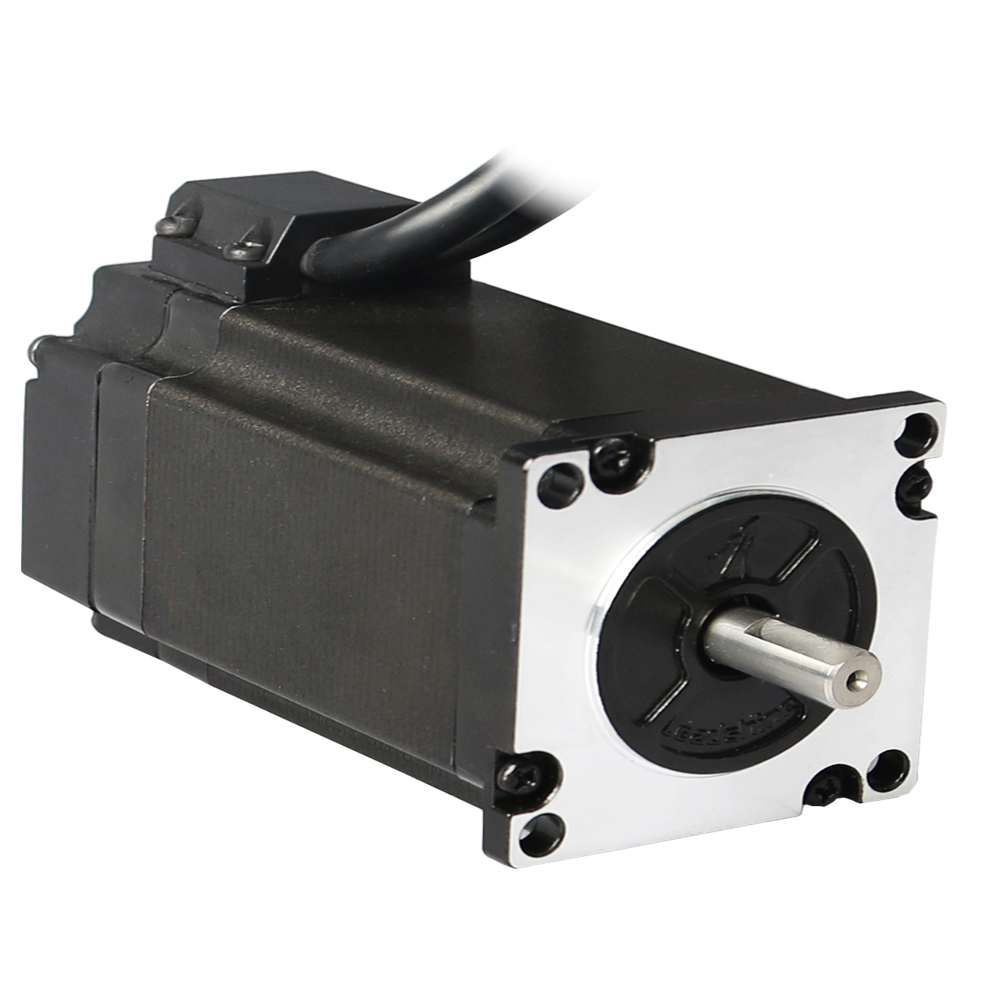

2.3 N.m (326 Oz-In) NEMA 23 Closed Loop Stepper Motor with 1000-Line Encoder; 6.35mm (0.25-inch) Shaft

2.3 N.m (326 Oz-In) NEMA 23 Closed Loop Stepper Motor with 1000-Line Encoder; 6.35mm (0.25-inch) Shaft

https://www.cnc4pc.com/web/image/product.template/1116/image_1920?unique=d95362a

Features



  • 2 phase, NEMA 23 frame size
  • 96 mm (3.78 inch) long
  • 5 A phase current
  • 2.3 N.m (326 oz-in) holding torque
  • 6.35 mm (0.25 inch) shaft size
  • Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
  • High precision, low motor heating, and low vibration

The CS-M22323-S is a 2 phase stepper motor with 2.3 N.m (326 oz-in) holding torque and integrated with a 1,000 line (4,000 counts/revolution) differential ended rotary encoder. Build with high-quality materials including bearings and shaft made by Japanese manufacturers, this closed-loop stepper motor can be adopted in many industrial applications with excellent performance such as high precision, low motor heating, and low vibration.

$ 105.95 105.95 USD $ 105.95

Not Available For Sale

  • Motor Frame
  • Closed Loop
  • Shaft Size

This combination does not exist.

Contact Us
Motor Frame: Nema 23
Closed Loop: Yes
Shaft Size: 1/4''
