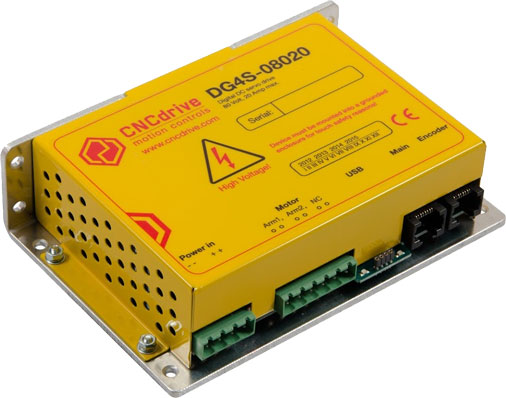

DG4S-08020 DC Servo Drive

-Power:80V and 20A.

-Opto-isolated step/direction inputs.

-Tuning through USB port.

-RJ45 connector for PLUG&PLAY like easy connection.

-Selectable 2x and 4x encoder logic.

-Step signal multiplier with selectable 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x, 9x, 10x options.

-Settable servo error limit from 2 to 20000 encoder counts.

-Fast 32bit advanced PID algorithm with 16bit PID parameters and settable sampling time.

-Current limiting, adjustable from 0 to 20Ampers.

-Servo error viewer software and diagnostics.

-Build-in 32bit DRO (digital readout).

-Step response analyzer in software
