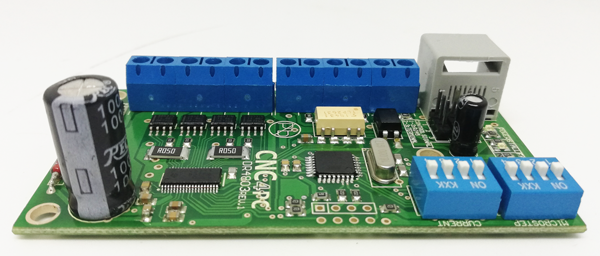

DIGITAL STEPPER MOTOR DRIVER

OVERVIEW

This card has been designed to provide a flexible interface and direct connection to the motors.

FEATURES

• Based on the DRV8711 Stepper Motor Controller.
• CSD88539ND Dual
• 48VDC and 3Amps max.
• Motor stall and device fault led indicators.
• MicroSteping setting 256.
• Current limit setting.
• Built-In 1/256-Step Microstepping Indexer.
• DIP switch current setting with 8 different value, up to 3A peak.
• Optional setting to have current be reduced to 50% of rated current.
