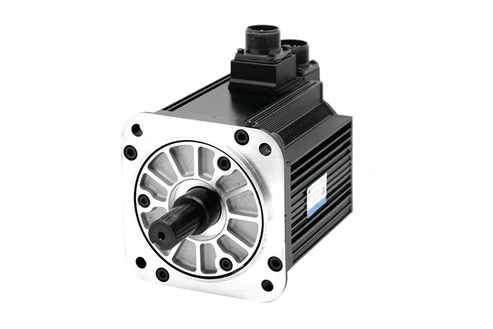

DST 1.8kW AC Servo Motor
1.8kW Medium Inertia AC Servo Motor.
| Servo Motor Model | 120-DST-A6 _ _ 1 |
|---|---|
| Rated Output | 1.8kW |
| Rated Voltage | 200V |
| Applicable Servo Drive | DYN4-T01 |
| Rated Torque | 11.5Nm |
| Instantaneous Max. Torque | 28.7Nm |
| Rated Current | 16.7A |
| Max. Current | 36.3A |
| Rated Speed | 1500rpm |
| Max. Speed | 3000rpm |
| Rotor Inertia | 23.8kg-cm^2 |
| Torque Coefficient | 0.74N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 9.38kg |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
