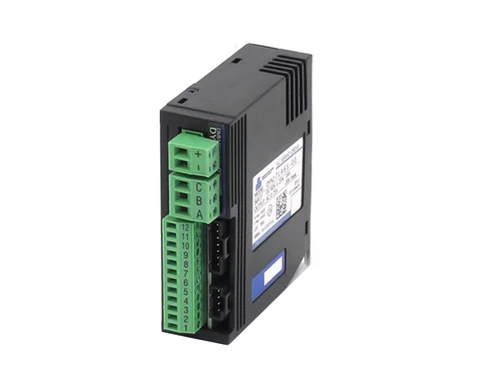

DYN2-TLA6S-00 AC Servo Drive

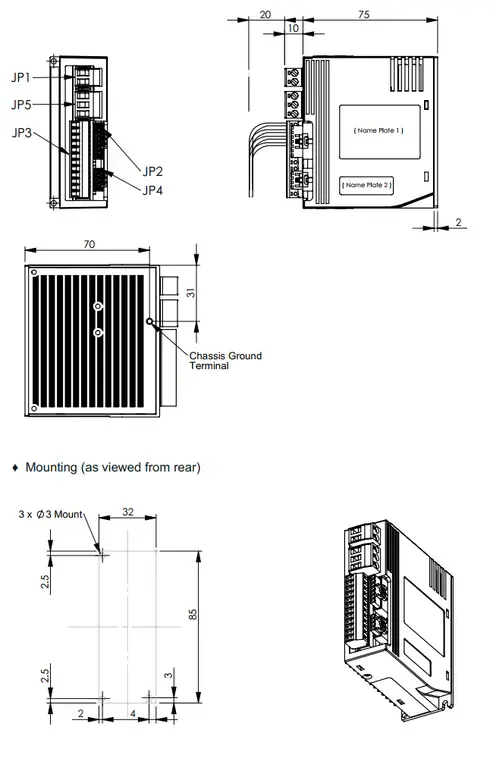

DYN2 AC Servo Drive
 |
Next Generation Low Voltage servo drive for universal applications. Higher resolution encoder feedback, increased speed and larger power capacity to meet demanding requirements. Industry standard Pulse/Analog interface with optional easy to use Serial RS232 command allows flexible integration. For every low capacity servo application, this is the new DYN2 AC Servo Drive. |
Features
- Low Voltage +60VDC Operation [ Min. +24VDC Max. +75VDC ]
- Position, Velocity, Torque servo modes
- 4-wire high speed serial encoder bus, with 8-bit security code for most reliable position feedback
- 16-bit (65,536ppr) resolution absolute encoder
- General Purpose Pulse/Analog Command
- Opto-isolated 25kHz PWM sinusoidal amplifier
- Industry leading package size - 20A peak current capacity
- Serial RS232 [UART,SPI] Point to Point, S-Curve, Linear & Circular Coordinated Motion. Absolute encoder position feedback. Absolute/Incremental modes.
Application
- Small / Medium Size Machine Tool / CNC
- Stepper / DC Servo Convertion+Retrofit
- Robotics / EV
- Camera / Lighting Automation
Documentation and Media
 |
DYN2 System Catalog 2015 - [ 05AP-A3412 ] |
|
Specification Manual - Type A Pulse/Analog [ Ver. A1.7 ] |
|
Robotics Application [ A1229 ] |
|
DYN2 System Selection [ 2210P10814001 08-005 ] |
 |
System Set-Up Instructions |
|
High Inertia Load Response |
|
2015 DYN Servo System Product Line - Indexing Demo |
|
4-Axis FA PLC Demo |
|
3-Axis Indexing Operation |
Pricing / Servo Motor Selection
Pricing for standard DYN2 AC Servo Drive.
| Servo Drive Model | Max. Output Current [Arms] | Servo Motor Capacity [kW] | Unit Price (USD) |
|---|---|---|---|
| DYN2-TLA6S-00 | 20 | 0.20~0.75 | $138.00 |
| DYN2-T1A6S-00 | 10.2 | 0.05~0.0.10 | $138.00 |
The DYN2 AC Servo Drive is paired with the following servo motor models.
The following servo motor pairs show standard stocked inventory and usually available immediately or with minimal lead time. Please contact us for custom model purchasing inquiries.
| Servo Motor Model | Rated Output [kW] | Rated Speed [r/min] | Max Speed [r/min] | Rated Torque [N.m] | Peak Torque [N.m] | Frame Size | Applicable Servo Drive | Unit Price (USD) |
|---|---|---|---|---|---|---|---|---|
| 86L-DHT-A6TD1 | 0.22 | 3,000 | X | 0.70 | 2.1 | 86mm [NEMA34] |
DYN2-T1 | $125.00 |
| 86M-DHT-A6MK1 | 0.75 | 2,000 | 2.4 | 7.1 | DYN2-TL | $194.00 | ||
| 405-DST-A6TS1 | 0.05 | 3,000 | 5,000 | 0.16 | 0.48 | 40mm | DYN2-T1 | $125.00 |
| 410-DST-A6TS1 | 0.10 | 0.318 | 0.955 | 40mm | $133.00 | |||
| 620-DST-A6TK1 | 0.20 | 0.637 | 1.91 | 60mm | DYN2-TL | $137.00 | ||
| 640-DST-A6TK1 | 0.40 | 1.27 | 3.82 | 60mm | $147.00 |
Note: 1. The 86L-DHT-□ □ □ □ □ servo motor rates the torque at the same rated and maximum speeds. The torque profile is consistent throughout the speed range. Mechanically permissible speed is higher than rated maximum speed. Maximum speed depends on motor voltage-speed gradient and servo drive input voltage.
2. The 86M-DHT-A6MK1 750W capacity servo motor has a rated and peak speed of 2,000min-1 when paired with DYN2 AC servo drive.
2. The 86M-DHT-A6MK1 750W capacity servo motor has a rated and peak speed of 2,000min-1 when paired with DYN2 AC servo drive.
