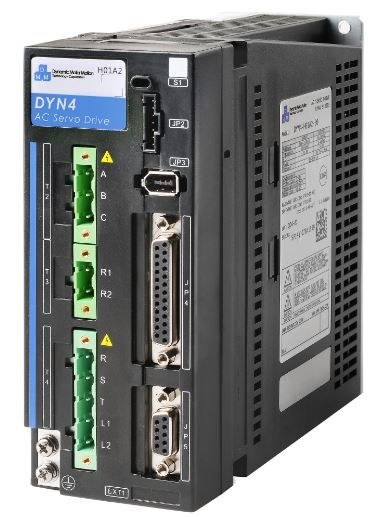

DYN4 Series AC Servo Drive
 |
Combining the latest DMM servo control technology with 16-bit high resolution feedback and brand new monitor functions, the DYN4 AC Servo Drive achieves ultimate accessible performance. Industry standard pulse/analog/serial interface, easy PC set up and low cost makes the DYN4 AC Servo Drive most applicable and suitable for any motion control application. |
Features
- 4-wire high speed serial encoder bus, with 8-bit security code
- DMMDRV4© graphical interface, Adaptive Tuning Technology
- Single/Three-Phase 110~240VAC ± 10% 50/60Hz input
- Industry standard Position, Velocity, Torque servo modes
- Serial [UART,SPI], Pulse/Sign, CW/CCW, A/B Quadrature, and Analog Command
- A/B/Z Quadrature incremental encoder output
- Motor Current, Absolute Position, Position Error Monitor Outputs
- RS485/RS232 networking
- Integrated Point to Point S-curve motion, linear & circular coordinated motion
Application
- Machine Tool / CNC
- Factory Automation
- Robotics
- Printing / Packaging
Documentation and Media
 |
DYN4 AC Servo System Catalog 2014 V.01 [PDF] |
|
Instruction Manual A1.7a [PDF] |
 |
High Inertia Load - Response |
|
2015 DYN Servo System Product Line - Indexing Demo |
DYN4 Pricing / Servo Motor Selection
Pricing for standard DYN4 AC Servo Drive.
| Servo Drive | Servo Motor Capacity [kW] | Unit Price (USD) |
|---|---|---|
| DYN4-L01A2-00 | 0.05 ~ 0.4 | $218.00 |
| DYN4-H01A2-00 | 0.75 ~ 1.0 | $218.00 |
| DYN4-T01A2-00 | 1.3 ~ 1.8 | $267.00 |
The DYN4 AC Servo Drive is paired with the following servo motor models.
The following servo motor pairs show standard stocked inventory and usually available immediately or with minimal lead time. Please contact us for custom model purchasing inquiries.
| Servo Motor Model | Rated Output [kW] | Rated Speed [r/min] | Max Speed [r/min] | Rated Torque [N.m] | Peak Torque [N.m] | Frame Size | Unit Price (USD) |
|---|---|---|---|---|---|---|---|
| 86M-DHT-A6MK1 | 0.75 | 3,000 | 5,000 | 2.4 | 7.1 | 86mm [NEMA34] |
$194.00 |
| 405-DST-A6HS1 | 0.05 | 0.16 | 0.48 | 40mm | $129.00 | ||
| 410-DST-A6HS1 | 0.10 | 0.318 | 0.955 | 40mm | $142.00 | ||
| 620-DST-A6HS1 | 0.20 | 0.637 | 1.91 | 60mm | $153.00 | ||
| 640-DST-A6HS1 | 0.40 | 1.27 | 3.82 | 60mm | $177.00 | ||
| 880-DST-A6HK1 | 0.75 | 2.39 | 7.16 | 80mm | $239.00 | ||
| 11A-DST-A6HK1 | 1.0 | 1,500 | 3,000 | 4.77 | 14.3 | 130mm | $287.00 |
| 115-DST-A6HS1 | 1.3 | 8.27 | 23.3 | 130mm | $345.00 | ||
| 120-DST-A6HS1 | 1.8 | 11.5 | 28.7 | 130mm | $378.00 |
