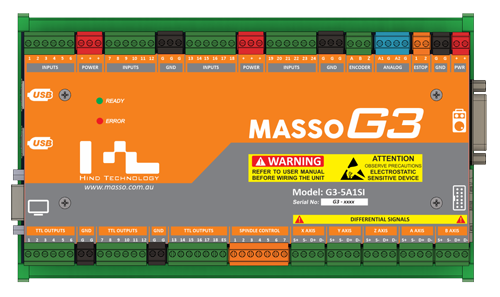

MASSO G3 CNC Controller

The all new MASSO generation 3 (G3) controller
• 4 Times faster at loading gcode files.
• More memory for additional software features.
• 4 USB ports - no need for USB hubs - connect keyboard, mouse, touch screen and pen drive directly.
• All 5 axis now have differential signal outputs.
• WiFi hardware and software included - transfer G-code using WiFi and monitor your job.
• Future expandability - Ability to directly connect smart motor drives.
• Color-coded Connectors - Connectors are color-coded for easy identification.
• Built-in Power & Ground Terminals - No need for connecting external terminal blocks for power or ground signals.
• Same size and mounting profile as of MASSO Gen 2 controllers.
• Support for 100 tools.
• Better noise immunity.

Options not available or different as compared to MASSO Gen 2
• 24 Inputs.
• 3 Encoder inputs.
• 18 Outputs with reverse polarity protection.
• 1 estop Output with reverse polarity protection.
• No relay driver outputs as a lot of clients were damaging controllers due to wrong setup/wiring.
• No Serial and RS485/MODBUS.
