Gecko Diver G540 4 Axis Driver

OVERVIEW

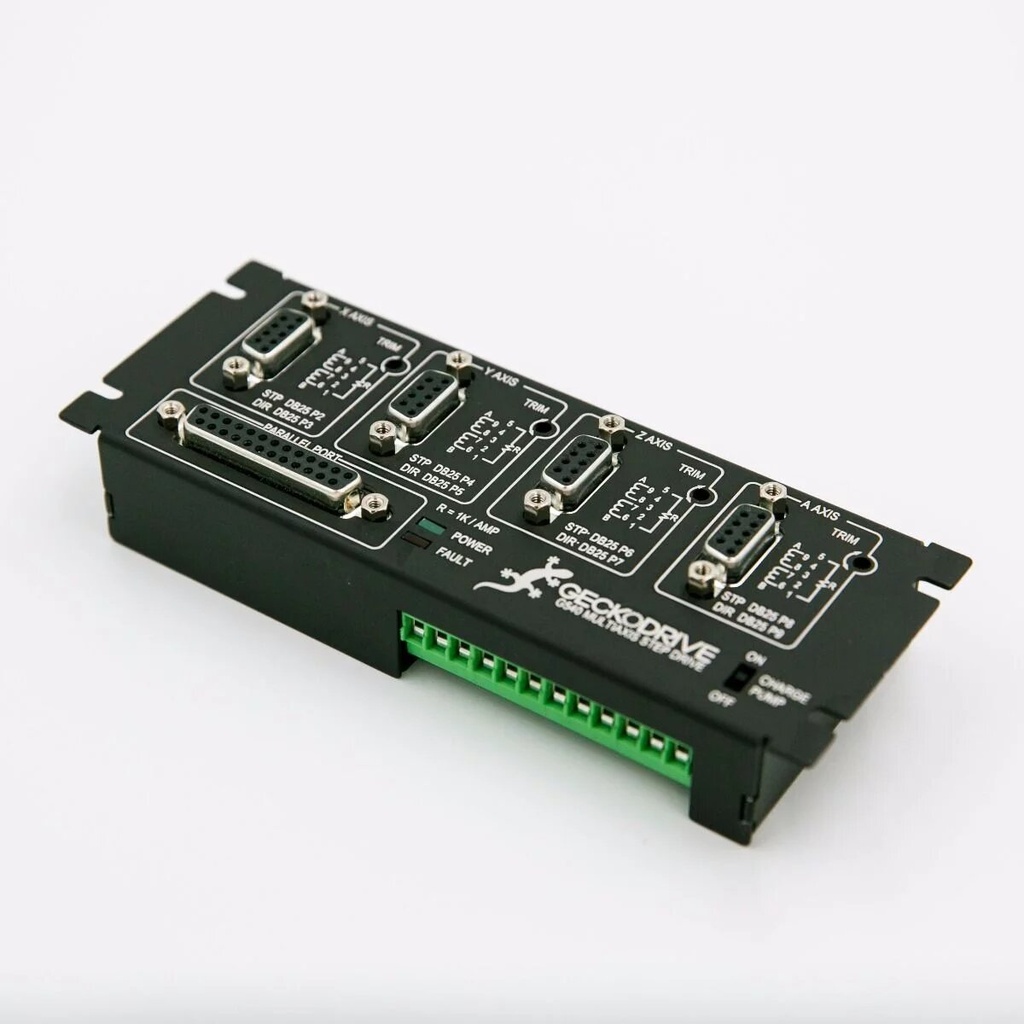

The G540 is a complete 4-axis system which plugs directly into your computer via the parallel port and to your motors through DB9 connectors. It contains four of our G250 drives, our own breakout board and a hard anodized aluminum case.

Features

Four 10 microstep fixed resolution discrete motor controls

0 to 3.5A rated phase current

18VDC to 50VDC supply voltage

Mid-band resonance damping

Auto standby current (70% current)

Short-circuit protected

Optoisolation on all LPT signal pins

Two 1A at 0 to 50VDC rated outputs

Four SPST to GND inputs

FAULT indicator LED,signal to PC

POWER indicator LED

I-SET resistor on motor connector

Morphs to full step at higher speeds to maximize motor torque

TRIM adjust for motor smoothness

Panel mount (5.7” by2.4” hole dim.)

Anodized aluminum package

No heatsink needed below 40C ambient

Easy to service, removable drives

Modular PCB design with no internal wires

10kHz watchdog timer (charge pump)

Optoisolated analog output for a VFD drive

Conservative ratings, premium components

Comes with four backshells and four DB9 solder cup connectors
