- Drive up to 60V A 150W DC Motor
- 60V 3A 150 W 'a kadar DC Motor srebilir
- Power FETs are 100V 19A
- Transistr of power100V 19A dir.
- Opto coupler isolated inputs
- Opto Coupler and has been isolated inputs can slim 5V TTL level.
- Brake / Idle control is also possible
- Fran and is free conrtrol mknd
- Can be use with CAP04, driving Torch Z axis motor for UP and DOWN control.
- CAP04 When used with capacitive sensor can automatically control the torch made ??ykseklik
- Adjustable Current allows you to limit the TORQUE of motor
- Adjustable flow control, motor allows you to limit the TORQUE.
- Limit Switch Inputs can provide only one direction rotation. There is no need additional relay and directional diodes.
- Limit Switch by more forward / backward to go on R RICE: Rest . There is no need for external RLE .
- Input and output connectors are possible to mount vertically for space saving. (Please inform us during on order)
- Input , Output connectors can be mounted vertically (please specify in the order during Lutfi )
For Building a Torch Lifter -Torch Levitator

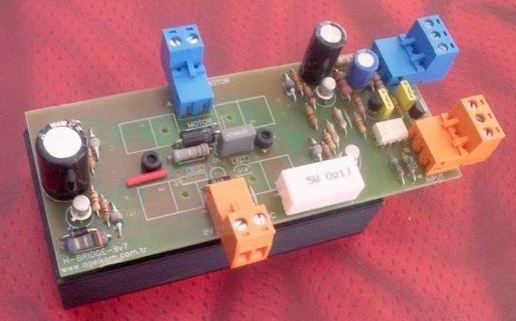

New H-Bridge-9 with Adjustable Current Control
Motor Controller / Driver
A and B inputs are for DIRECTON and SPEED control
Low Speed
% 50 Speed
High Speed
A in | B in | Motor |
0 | 0 | Motor Brake |
1 | 0 | Run A direction |
0 | 1 | Run B direction |
1 | 1 | Motor Idle |
