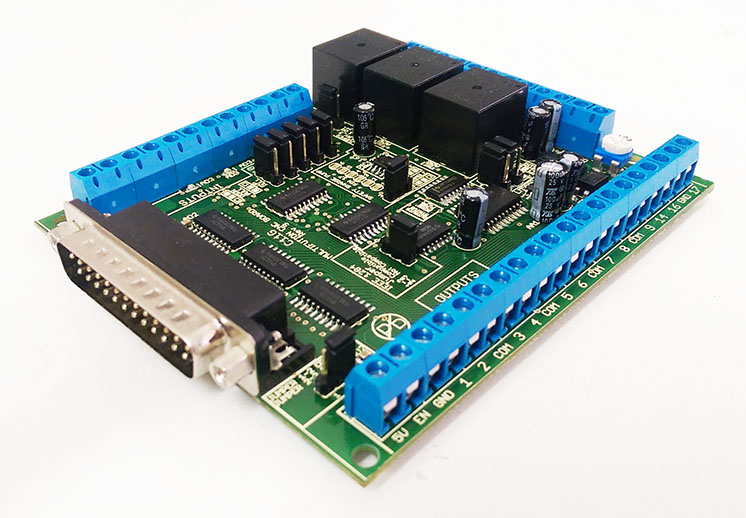

This card has been designed to provide a flexible interface and functions to your computer projects by using the parallel port or USB-based or Ethernet-based controller. This board comes as a response to many customers that have been asking for a faster way to connect devices and reduce the possibility of wiring errors.
FEATURES
- IEEE 1284 Standard compatible.
- PULL-UP or PULL-DOWN selection for inputs.
- Buffered inputs and outputs.
- Microcontroller based SCHP.
- Built-in Variable Speed Control.
- Electromechanical Relays with NO and NC positions.
- Status LEDs on all inputs and output connections.
- Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16 and 17. • Input pins 10, 11, 12, 13 and 15.
- Input and output pins close to ground or +5vdc connections.
- Common terminal for pins 2-9 can be ground or +5vdc.
- External Enable Pin (EN).
- Works directly with popular CNC hardware and software.
- All TTL 5VDC signals.
- Screw-On connections for all terminals.
- All pins can be used in a concurrent manner.
