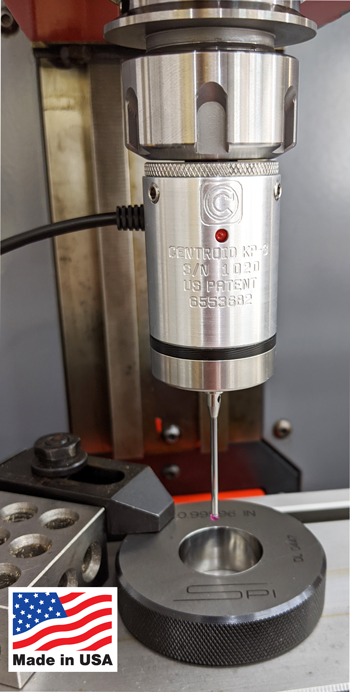

KP-3 CNC touch probe

OVERVIEW

The KP-3 is a CNC Touch Probe intended for probing to find part zero’s, reference positions, locate bores, bases, corners, etc., and digitizing which allows for the copying of surfaces and shaped objects. The user should first become familiar

with the various parts and features of the probe as shown below to facilitate assembly, installation, operation, and calibration. Read the stylus installation and alignment procedures section before attempting assembly. Review the over-travel

limits are shown in the specifications. Exceeding the limits will damage the probe and stylus.

FEATURES

• Probing directions X+/-, Y+/-, Z-

• Unidirectional repeatability (2 sigma) 0.00006” (1.5 micron)

• Practical use on a good milling machine.0005”

• Probe deflection force (X, Y) 3 ounce minimum with 40mm stylus

• Probe deflection force (Z) 15-ounce minimum

• Probe body diameter and length D= 1.35” (34.3mm) L= 2.16” (54.9mm)

• Mounting shank diameter and length D= 0.5” (12.7mm) L= 1.47” (37.3mm)

• Stylus mount thread M3 thread

• Po
