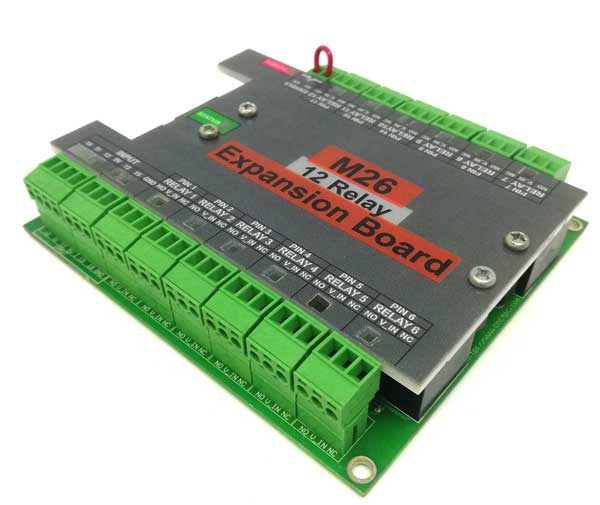

M26X - 12 Relays Expansion Board

Overview

This board provides 12 electromechanical relays with NO (Normally Open) and NC (Normally Closed) connections; this version can be easily mounted on control boxes using DIN rails and can also accommodate ribbon cables.

Connect with Clean and Simple Connections

• 12 Electromechanical relays with NO and NC positions.

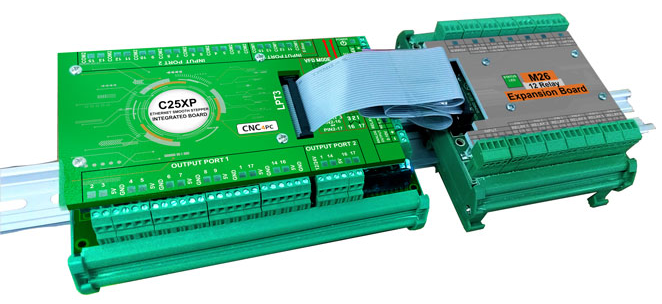

• Use IDC26 to connect to the ESS, M16D (PoKeys), UC300ETH-5LPT, AXBB, C25XP, C94, or C76 (UC300ETH).

• Status LEDs on all relay connections.

• External Enable Pin (EN). The board has a pin that allows you to enable/disable all the relays at once.

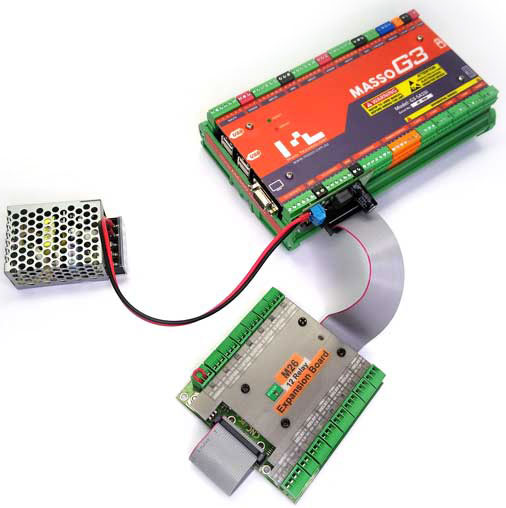

• Can be powered and tied to the ENABLE line of the C76, M16D, C25XP (Rev4) C94, and MASSO G3 (M40 Board) through an IDC26 ribbon cable. *NEW*.

• Has terminals to allow access to available input pins.

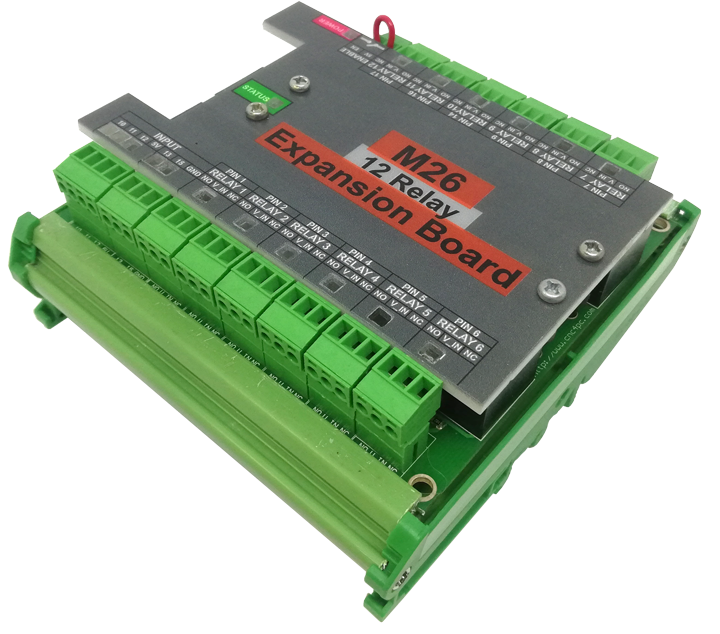

• Din rail mountable.
