OVERVIEW

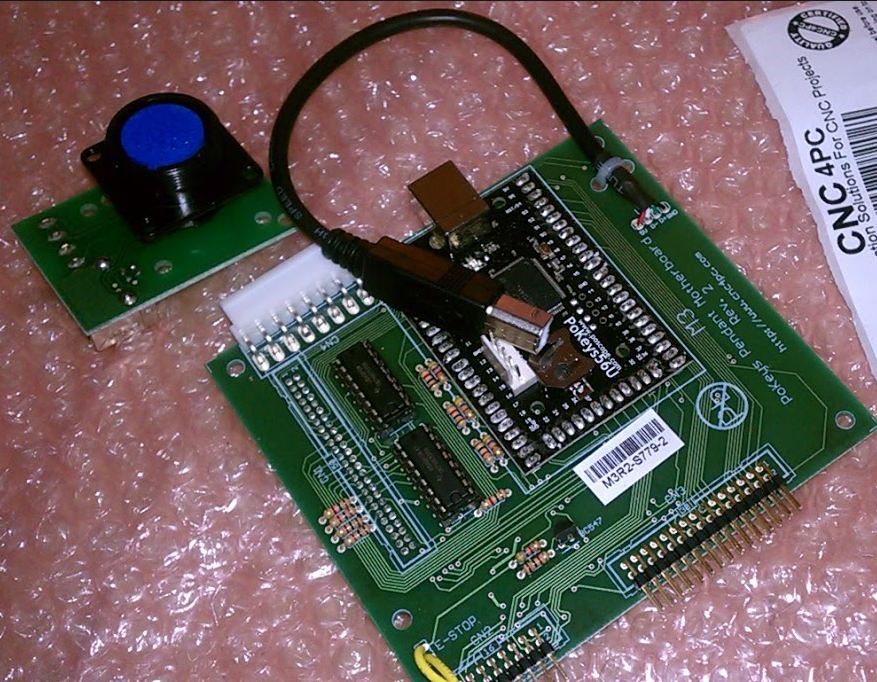

This board replaces the core board on a Yaskawa pendant to upgrade it for use with mach3.
FEATURES
- Fits inside the original pendant. Has all the same connectors. Only the E-Stop cables need to be soldered.
- Comes with the connector for connecting the original cable to a USB interface.
- Provides a Relay that is connected to the E-Stop button on the pendant.
- Works with the PoKeys.
- All the features are implemented, but it is easy to customize using the pokeys plugin or other mach3 tools.
CONFIGURATION INSTRUCTIOS
- Update the pokeys software and update the firmware.
- Download the xml and copy the brains into the brain directory.
- Update to the latest version of mach3.
- Run mach3 and enable the plugin. Select the plugin, and go to configure, then import the download XML.
