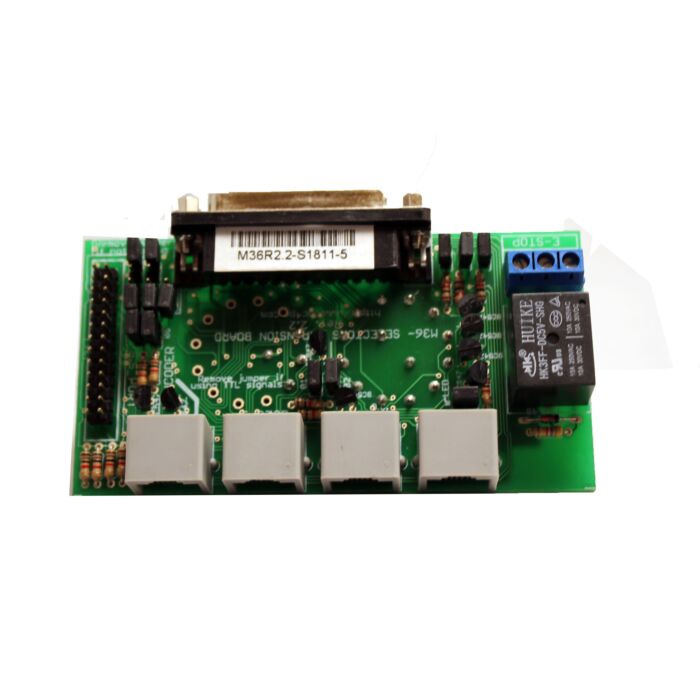

M36 - Axis and Resolution Expansion Board

M36 - Axis and Resolution Expansion Board

https://www.cnc4pc.com/web/image/product.template/174/image_1920?unique=4657cac

$ 40.85 40.85 USD $ 40.85

Not Available For Sale

    This combination does not exist.

    Contact Us
    Documents

    OVERVIEW

    This board provides the Axis and Jog Resolution Selection that can be used on Remote Pendants or CNC Panels. Has connections for Encoders, E-Stop button and other O/Is.

    FEATURES

    • 3 Positions Rotary switch for Resolution selection.
    • 6 Positions Rotary switch for axis selection.
    • RJ45 for E-Stop, Encoder and I/Os connection.
    • DB25 for connecting to a C22, M2 or C32 boards
    • 5 I/Os or Open collector outputs. (Only available if this board is connected to a M2)
    • Pin header of 26 pins for connect a Smooth Stepper
