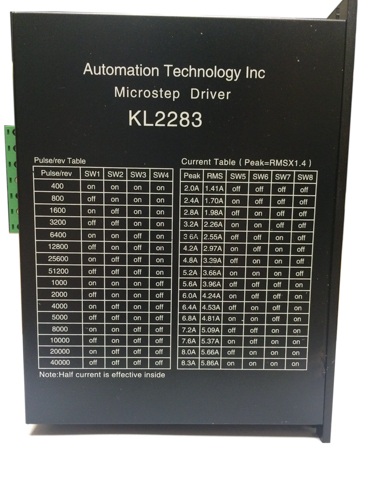

2283 8.3 Amp Digital Bipolar Stepper Motor Driver, AC 80-220VAC - 32 bit DSP Based

PRODUCT DESCRIPTION

• 2283 8.3 Amp Digital Bipolar Stepper Motor Driver, AC 80-220VAC - 32 bit DSP Based
• 1: High Performance
• 2: Supply voltage AC 80-220VAC, Power supply is built in.
• 3: Automatic Idle-Current Reduction
• 4: Micro step:  2,4,5,6,8,10,16, 18,32,40,50,64,128,256
• 5: Current: 2A, 2.4A,2.8A, 3.2A, 3.6A, 4.2A,4.8A, 5.6A, 6.0A
• 6.4A, 6.8A, 7.2A,7.6A, 8.0A,  8.3A
• 5: Full or Half Current Mode: Sw5: 1 = Half Current, 0 : Full Current
• 6: TTL compatible and Optically Isolated Signal I/O
• 7: Short-voltage, over-voltage, over-current and over temperature
• protection
• 8: Pulse input frequency up to 400 KHz
• 9: Support PUL/DIR
• It is used for high Inductance NMEA34 or NEMA42 motor, pls wire the motor as bipolar series
• You do not need power supply. This driver is for high inductance motor, you need to wire the motor at serial bi-polar configuration.
• about 5 ibs
