OVERWIEV

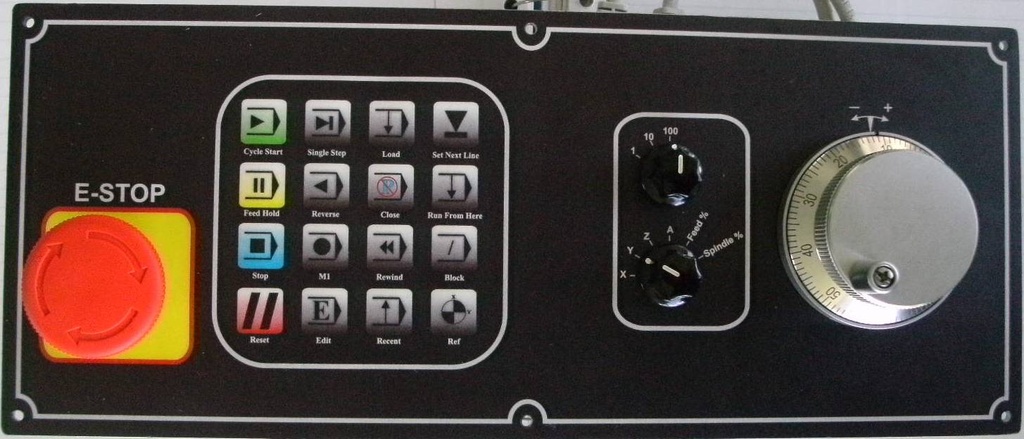

This is a well built pendant with the functions needed for jog CNC equipment. I is sturdy, and professional looking. This pendant is just like MPG2 and MPG4, but it is designed to be mounted as a panel and working through a USB connection using a PoKeys board.
FEATURED
- Works with Mach3 on a pokeys device that works through USB
- Metallic hand wheel with professional look and feel.
- Axis selector knob. X, Y, Z, 4, Feedrate Override, Spindle Speed Override.
- Jogging resolution.
- Keypad with most commonly used keys.
- E-Stop Button.
- Has a relay for e-stop, the output terminals of this relay can be used for hardware disable on e-stop.
- The PoKeys Mother Board has 4 expansion ports available, which can be used for connecting additional boards, such as keypads, LCD displays, and general I/Os.
- The Keypad has 3 available ports for connecting 3 more keypads, till you form an 8x8 matrix. Another set of 4 keypads can be connected to form up to 16x16 matrix.
- Quadrature +5VDC A and B output.
- No additional Power supply needed. It draws its power from the USB connection.
- 100 Pulses per revolution with detent per pulse.
- Custom OEMs designs are welcome, please contact me with what you have in mind.
