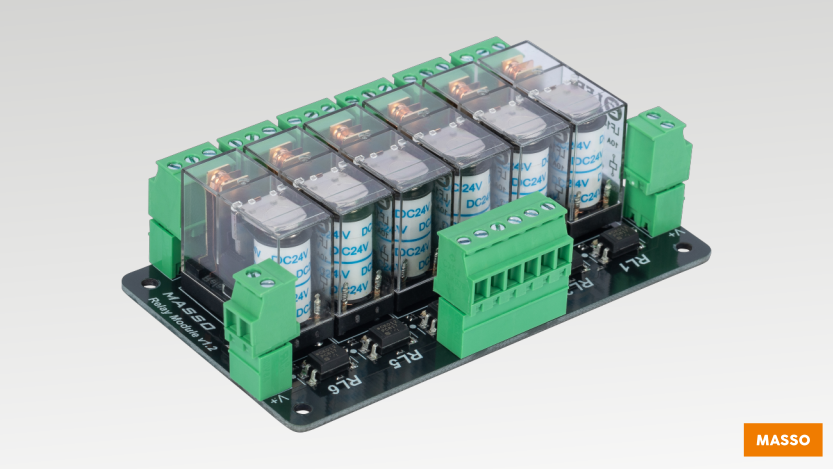

The MASSO Relay Module gives six optically isolated relay outputs for switching higher voltage and current loads from the MASSO controller.
- Optical isolation protects MASSO and low voltage components
- Multi-colour LED per relay: green when the relay is on, red when a switch-on signal was received but the relay failed
- Each relay switches 5A at 28VDC or 5A at 240VAC
- Runs from a single 24VDC supply
- Mounts with M3 screws; optional 35mm DIN rail support
- Warning: reversing the power polarity will damage the module
