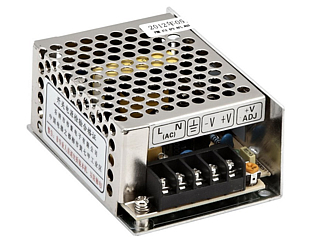

+12vdc @ 1.2 Amp 15W AC/DC ENCLOSED SWITCHING POWER SUPPLY

�

Model �	MS-15-5	MS-15-12	MS-15-15	MS-15-24
DC output voltage �	5V	12V	15V	24V
Output voltage range(Note:2) �	�2%	�1%	�1%	�1%
Rated output current �	3A	1.3A	1A	0.7A
Output current range �	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise(Note:3)	70mVp-p	100mVp-p �	100mVp-p	100mVp-p
Inlet stability(Note:4)	�0.5%	�0.5%�	�0.5%	�0.5%
Load stability(Note:5)	�1%	�0.5% �	�0.5%	�0.5%
DC output power	15W	15W	15W	15W
Efficiency	70%	76% �	76%	72%
Adjustable range for DC voltage	+10.-5%	�10% �	�10%	�10%
Input current	0.5A/115V 0.25A/230V �
AC inrush current	Cold-start current 15A/115V 30A/230V �
Leakage current	<0.5ma 240vac<="" p=""> � 0.5ma>
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery �
Temperature coefficient	�0.03%c(-10~+50c) �
Setup, rise , hold up time	200ms, 50ms, 20ms �
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes �			�
Withstand voltage	nput and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10�c~+60�c(Refer to output derating curve), 20%~90%RH
Overall dimension	85�58�38mm �
Weight	0.15Kgs �
Safety standards	Meet UL 1012 requiement (Not apply for the mark) �
EMC standards	Meet FCC PART 15 J Conduction class B

�
