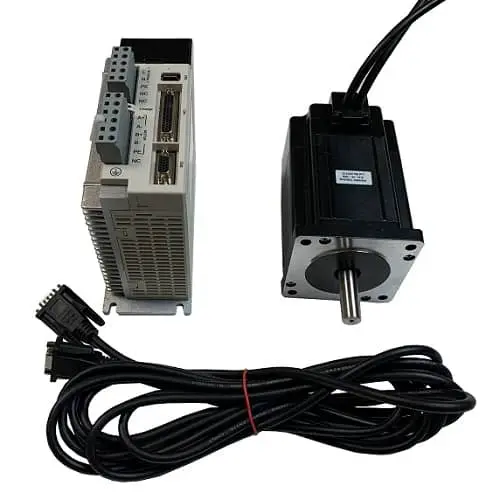

NEMA 34 Hybrid Servo kit (closed-loop stepper system):
1pc Hybrid Servo Driver 8080L
1pc NEMA34 34-8N-1000L Hybrid Servo Motor with one Encoder 1000 line
1pc 3-meter cable or longer
A: 8080L 2-phase Hybrid Servo Driver:
KL-8080L is a low-cost, high-performance servo system for a variety of large-scale automation equipment and instruments. Users should expect low-cost, low vibration, low noise, high-precision, high-speed equipment, more suitable for lower rigidity actuator loads, such as a belt type, than conventional servos.
- Input 60-110VDC / 45-80VAC, No Tuning, Nulls loss of Synchronization
- Output 6.0 A
- High-performance, low price
- Micro-step
- Automatic idle-current reduction
- Optical isolating signals I/O
- Max response frequency up to 200Kpps
- Low temperature rise, smooth motion
- Online adaptive
B: NEMA34 Hybrid Servo Motor, 34-8N-1000L, 1/2" Shaft
- Rated Torque 1128 oz-in, 8 N-m, with Encoder 1000 line
- Number of Phases: 2
- Step Angle: 1.8°±5%
- Motor Holding Torque: 8.0 N.m
- Current: 6.0A
- Phase Inductance(1KHz): 4.3 ±20%mH
Wiring:
A+ to BLU
A- to RED
B+ to GRE
B- to BLK
C: 3 or 5 meter Encoder cable
1000 pulses per revolution
Quadrature digital signals: 4000 steps per revolution
4000 / .05 pitch
80,000 counts per unit
The encoder interface definitions (CN2 interface of the driver):
Pin 3 --> White --> EGND
Pin 2 --> Red -- > VCC
Pin 13 --> Blue --> EA-
Pin 1 --> Black --> EA+
Pin 12 --> Green --> EB-
Pin 11 --> Yellow --> EB+
