PlasmaSensOut - THC controller

Description

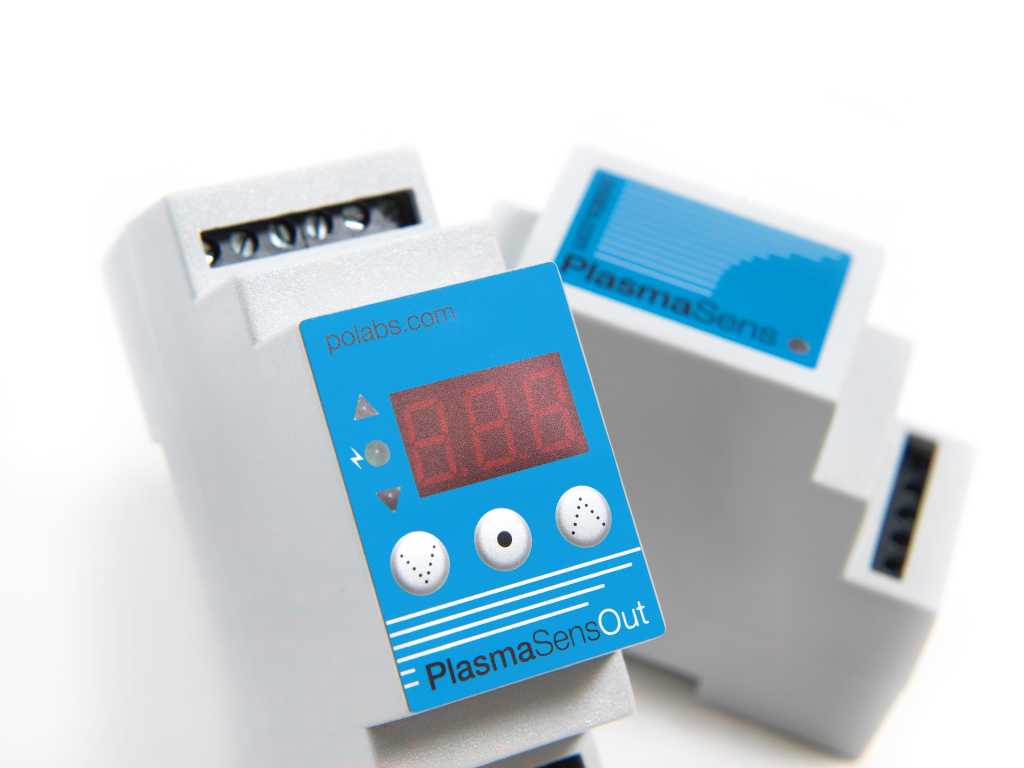

PlasmaSensOut is a universal torch height controller (THC) for use with the PlasmaSens – torch height sensor device. Thanks to an optical connection it’s fully electrically (galvanically) isolated from high voltage plasma cutter’s equipment and so it’s safe to use. PlasmaSensOut provides standard programmable ARC_OK, UP and DOWN signals and it’s compatible with most CNC controller boards on the market. A simple user-friendly interface allows quick and efficient moving through the menu using three menu buttons. Led display in default state shows temporally arc voltage and led diodes to signalize state of output. User can set the following THC parameters: reference voltage, hysteresis (non-active range around reference height), delay time and anti-dive limit voltage. All parameters are adjustable during operation.

Features

• Output signals: Arc OK, Up and Down (DC solid state)
• Programmable reference and hysteresis voltage, delay time and anti-dive limit voltage
• Current plasma voltage presentation on LED display
• Arc present, up and down – LED signalization
• Full optical input isolation; transmitter and receiver connected over an optical cable
• Test mode operation
• DC power supply (6- 36 V)
• Compatible with most CNC controller boards
• DIN-rail mountable housing

Package includes:

• PlasmaSensOut device
• PlasmaSens sensor device
• Optical cable (2m and 5m)

Note: It is important to make sure the negative of the power connection is not common with the negative of the Main Power Supply, as this product can be very sensitive to noise issues.
