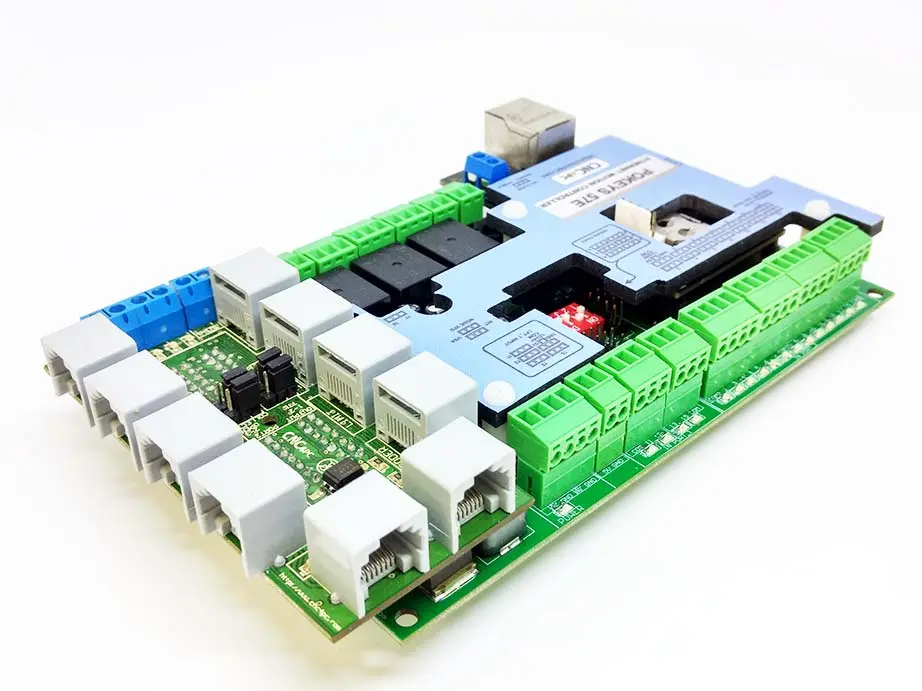

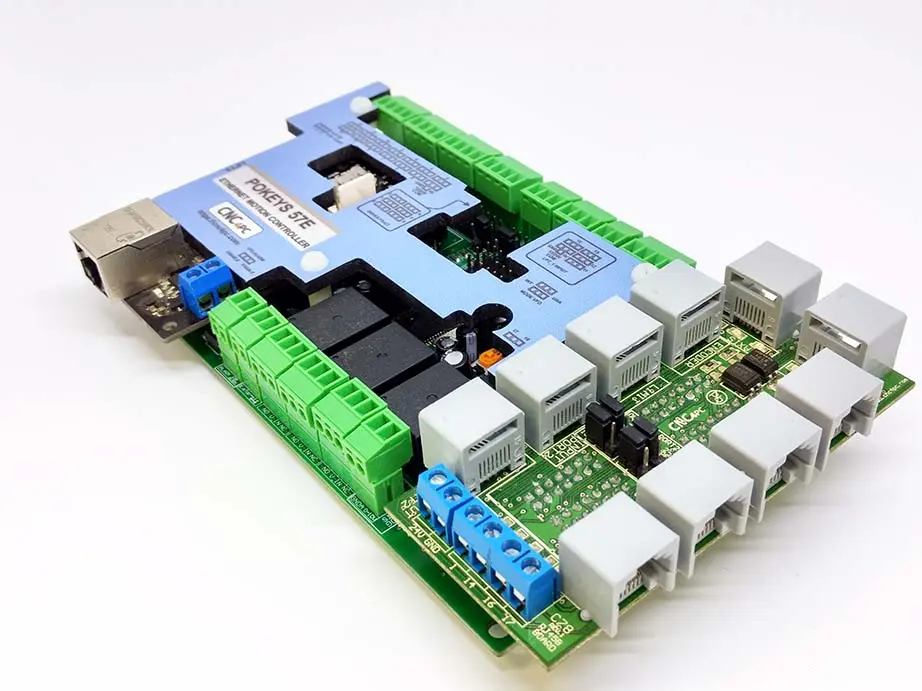

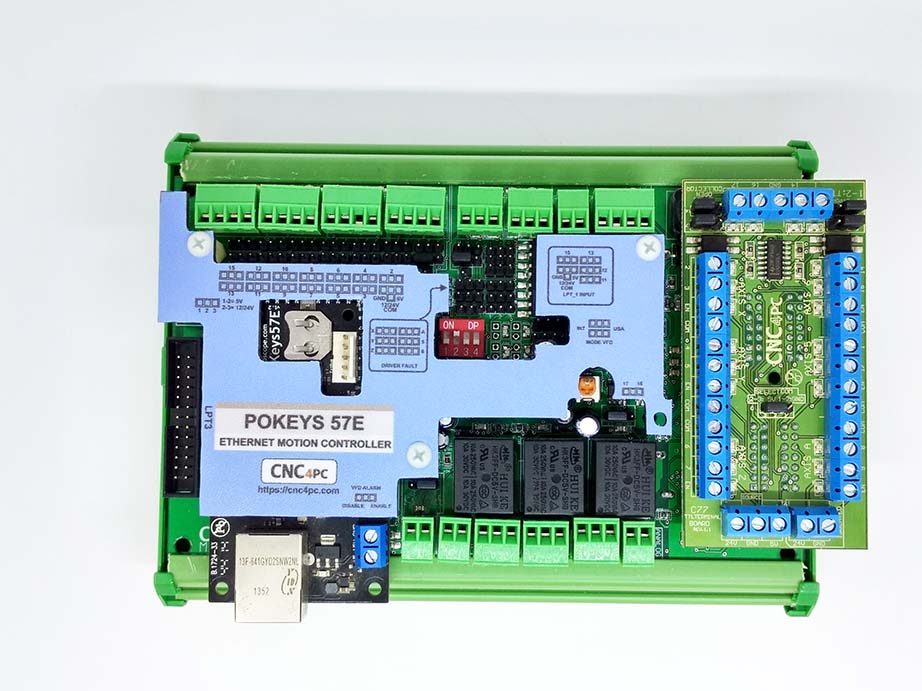

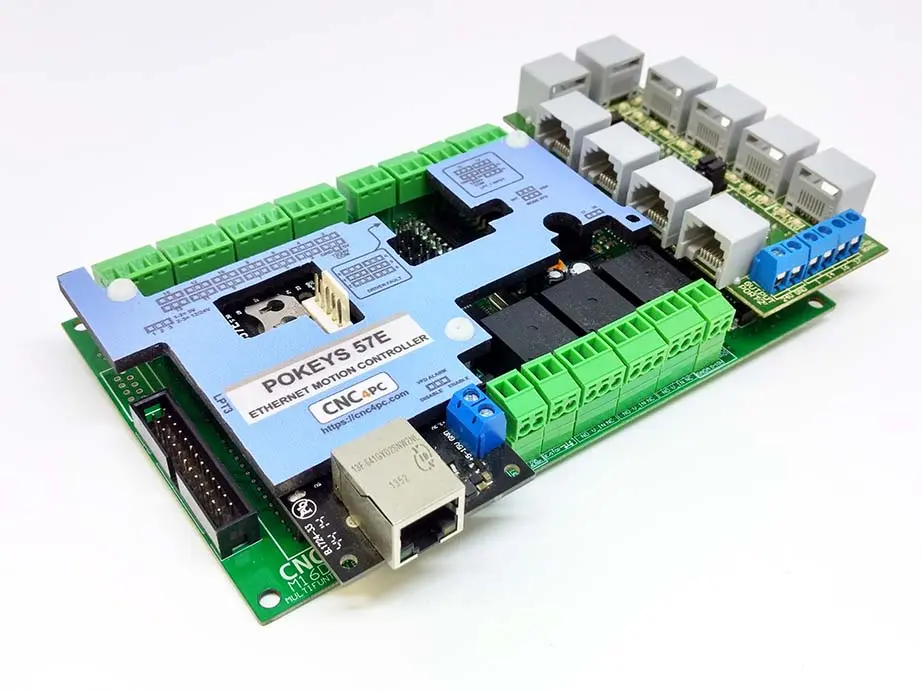

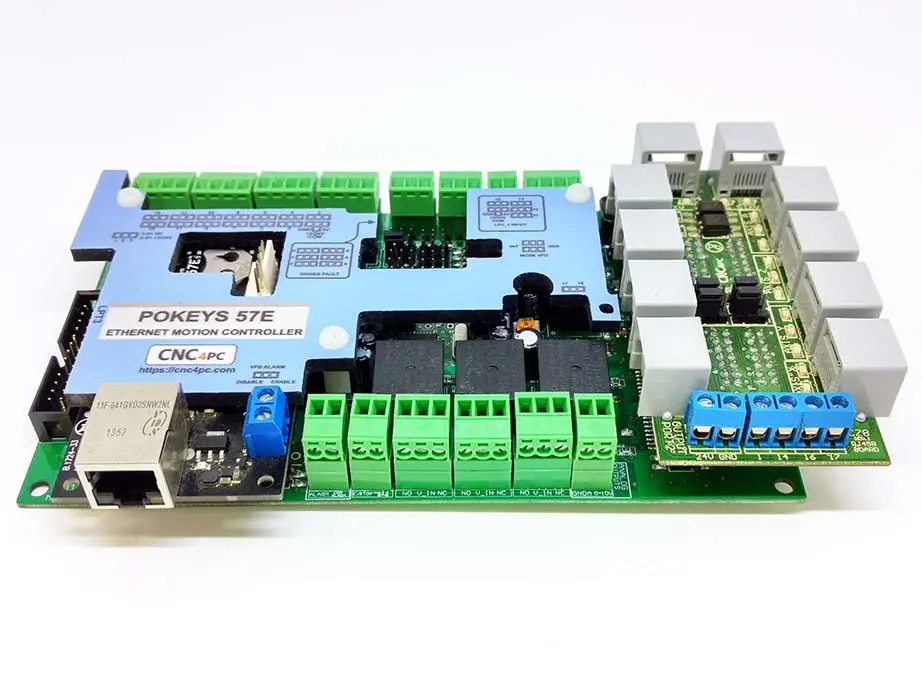

M16D - PoKeys Motion Motherboard

FEATURES

Designed for POKEYS ETH motion controller.
Built-in PWM-Based Speed Control and Two Built-in Electromechanical
Relays with NO and NC positions for spindle control.
The system monitors:
E-Stop
Safety Charge Pump.
VFD Fault.
Driver Fault.
Discrete Inputs and Outputs can be used with +5Vdc TTL logic or 10-30Vdc Logic.
Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).
Microcontroller-based SCHP.
Optoisolated inputs.
Can be powered with a voltage between +10 and +30VDC.
Status LEDs on all input and Output connections.
DIN Rail mountable.
Pluggable Screw-On Terminals.

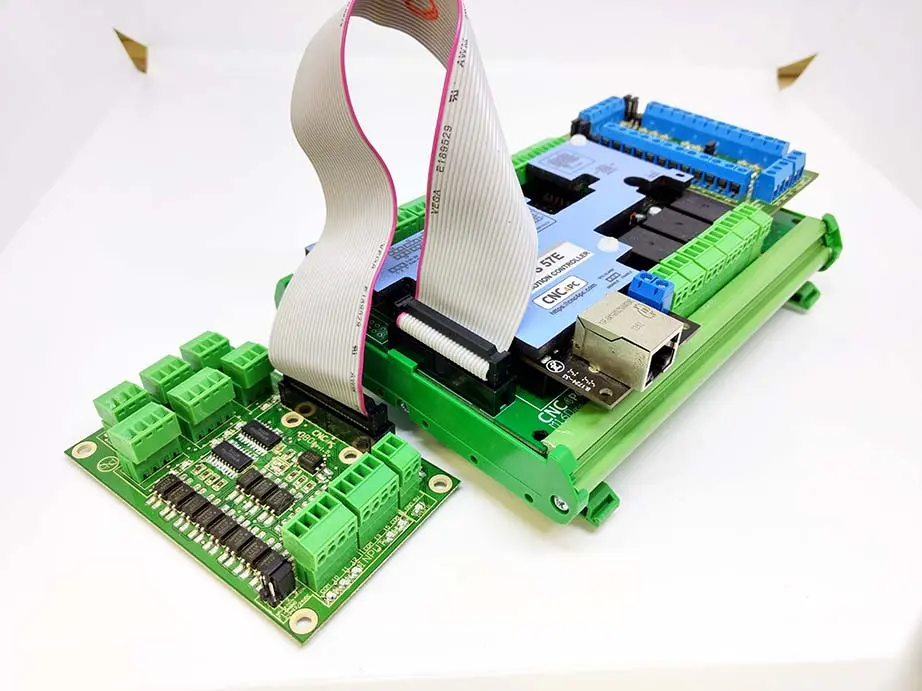

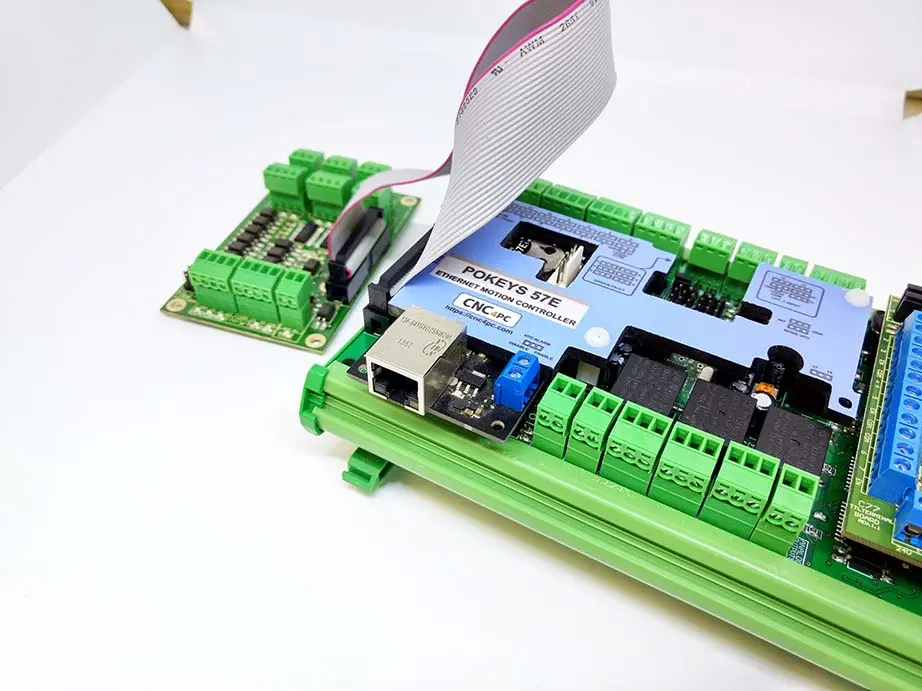

It is compatible with the family of C34 connector boards that allow quick connection to popular drives, connecting not just the step and direction signals, but also the fault and enable signals.

$ 159.84
