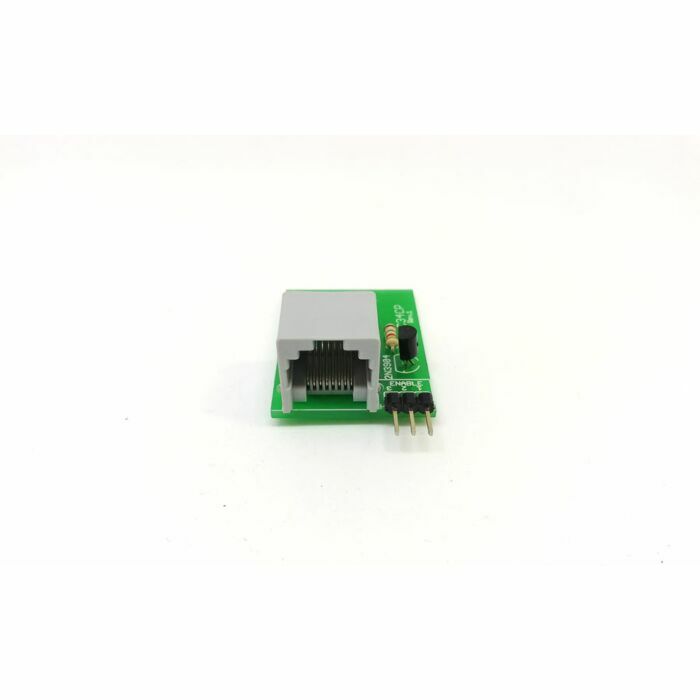

RJ45 to ClearPath Driver

OVERVIEW

This interfaces board is used for the connection between C82, C76, C86ACORN, C86MASSO , C35S and the
CLEAR PATH SERVO-DRIVE.

This connector is intended to be used with the ClearPath sold by Teknic.

 FEATURES

• RJ45 Connector per Axis.

• Select Jumper for Hardware Enable or Software Enable.

• Integrates the fault and enables lines to the breakout board. This allows a driver's fault to trigger E-STOP and to disable the driver when the system is disabled.

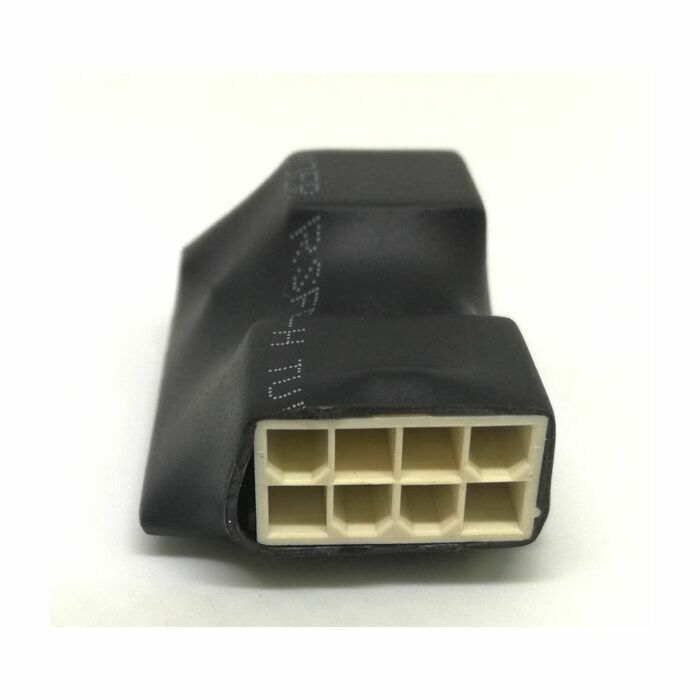

• Optional Connector to the original IP65 ClearPath cable.
