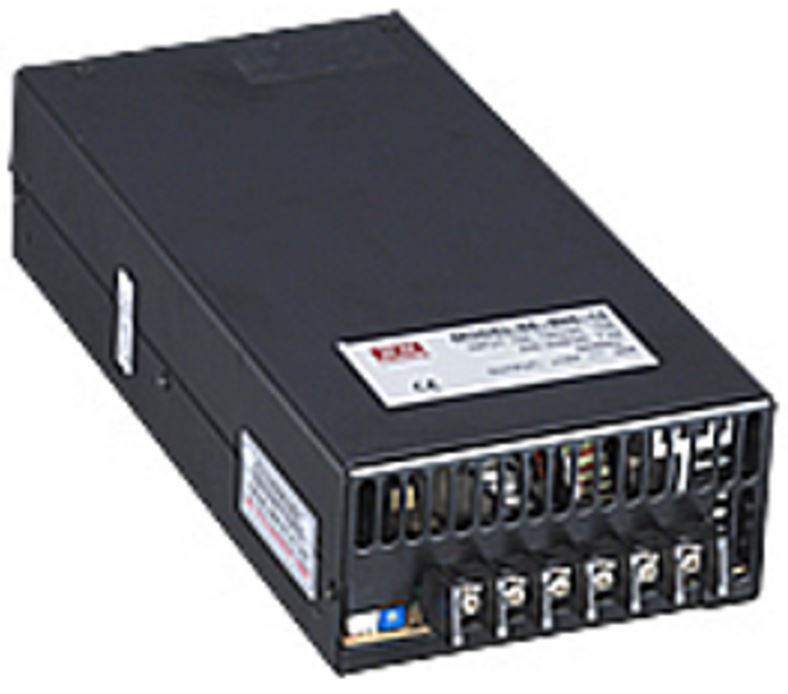

Features:
Protection way: short circuit/overload/overvoltage/temperature protection
Air cooling
Built-in LED the indicator
100% full load and machine test
Working frequency for 65 KHZ
High efficiency, long service life, high reliability
One year warranty
Size: 251*127*63.5(L*W*H)
|
|
|
|
model
|
SE-600-5
|
SE-600-12
|
SE-600 -15
|
SE-600 -24
|
SE-600 -27
|
SE-600 -48
|
|
output
|
Dc output voltage
|
5V
|
12V
|
15V
|
24V
|
27V
|
48V
|
|
Rated output current
|
100A
|
50A
|
40A
|
25A
|
22.2A
|
12.5A
|
|
Output current range
|
0-100A
|
0-50A
|
0-40A
|
0-25A
|
0-22.2A
|
0-12.5A
|
|
Output voltage tolerance
|
±2%
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
±1.0%
|
|
Into line stability
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
Load stability
|
±2%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
Output power
|
500W
|
600W
|
600W
|
600W
|
599.4W
|
600W
|
|
Ripple and the noise
|
240mVp-p
|
240mVp-p
|
240mVp-p
|
240mVp-p
|
240mVp-p
|
240mVp-p
|
|
Dc voltage adjustable scope
|
4.75 ~ 5.5V
|
10.8 ~ 13.2V
|
13.5~ 16.5V
|
21.6-26.4V
|
24-30V
|
42 ~ 52.8V
|
|
Start, rise time
|
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC Loaded with
|
|
Keep time
|
20ms/230VAC 16ms/115VAC Loaded with
|
|
input
|
Input voltage range
|
90 ~ 130VAC /180~260The switch choice
, 248 ~ 373VDC
|
|
Working frequency
|
47~63Hz
|
|
efficiency
|
78%
|
83%
|
84%
|
87%
|
87%
|
88%
|
|
Exchange input current
|
12A/115VAC 7.5A/230VAC
|
|
Impulse current
|
Cold start
40A/230VAC
|
|
Leakage current
|
<2mA / 240VAC
|
|
protection
characteristics
|
Overload protection
|
105 ~ 125% Rated load
|
|
Protection way: cut output, restart
|
|
Over-voltage protection
|
5.75~6.75V
|
13.8~16.2V
|
17.25~20.25V
|
27.6~32.4V
|
31~36.5V
|
55.2~64.8V
|
|
Protection way: cut output, restart
|
|
Temperature protection
|
85?±5?(TSW1)protect
|
|
Cut output, after cooling start
|
|
environment
|
Working temperature, humidity
|
-20~+60?,20 ~ 90% RH
|
|
Keep temperature, humidity
|
-40 ~ +85? , 10 ~ 95% RH
|
|
Vibrate resistance
|
10 ~ 500Hz, 2G 10min / 1 cycle time, 60 minutes, the axis
|
|
security
|
Compression sex
|
3: KVAC between input and output and input and output KVAC: 1.5 to:
1.5KVAC Output and to
:0.5KVAC
|
|
Insulation resistance
|
Between the input and output, the input and output, and ground:
100M Ohms / 500VDC
|
|
Accord with
standard
|
Safety standards
|
Accord with
UL60950-1
|
|
EMC standard
|
Accord with
EN55022 CLASSA
|
|
other
|
weight
|
1.8Kg
|
|
packaging
|
6pcs/12.5kg/1.14CUFT
|
|
Optional function
|
Voltage compensation
|
This function is optional, normal function when you ship products are no this function, if you need, please order that in advance
|
|
note
|
1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ? conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
|
