2200W 3HP Water Cooled CNC Milling Spindle

https://www.cnc4pc.com/web/image/product.template/481/image_1920?unique=694552e

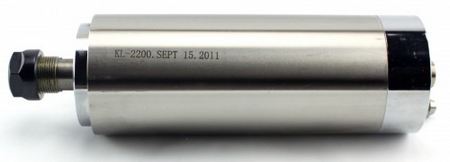

2200w 3HP Water Cooled CNC Milling Spindle

This water cooled 2200 watt CNC spindle is powerful enough to get the job done. With an 8000-24000 RPM range, ER20 collet chuck, and runout of less than 0.005mm, the KL-2200 spindle is ideal for routing, and other similar applications

KL-2200 spindle:
OD=80 mm

Length =215 mm

Voltage: 220V

Speed: 8000-24000 R/min

Power: 2200 W (3HP),

Frequency: 400 Hz

Water Cooling,

ER20 collet chuck: for tool size: 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" )

Grease Lubrication,

Runout off: less than 0.005mm

Water cooling about 20-26 gal/hr

KL-2200KL-2200

Can use this set of collects: ER20

301.32 301.32 USD 301.32

Not Available For Sale

This combination does not exist.
