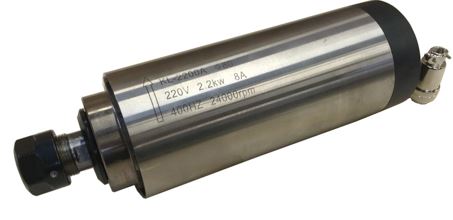

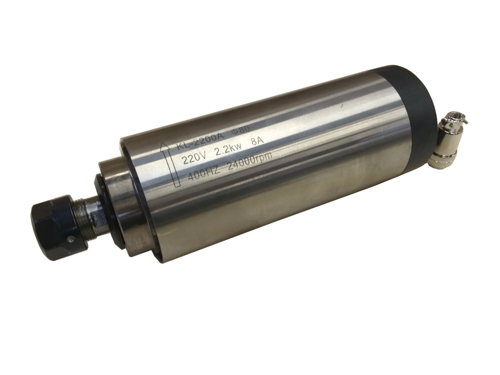

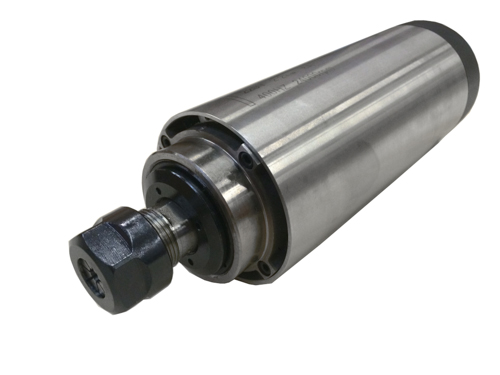

2200W (3HP) Air Cooling CNC Milling Spindle

AIR-COOLING HIGH SPEED HIGH PRECISION SPINDLE

NUMERICAL ENGRAVING/GRINDING/MILLING

FOUR BEARING

OD=80 mm

Length =215 mm

Input Voltage: 220V  Single Phase or 3 Phase

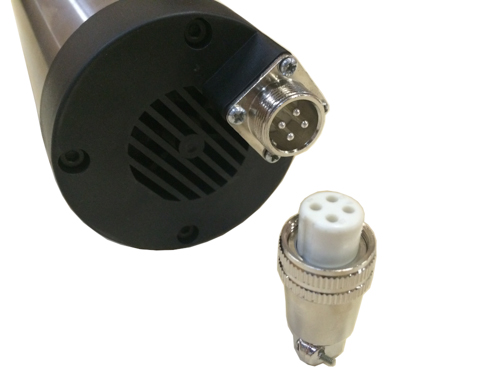

Output:  U,V, W, 1 to  U,  2 to V, 3 to W

Speed: 8000-24000 R/min

Power: 2200 W (3HP),

Frequency: 400 Hz

Air Cooling,

ER20 collet chuck.

Grease Lubrication,

Runout off: less than 0.005mm

1 to  U,  2 to V, 3 to W

weight: 12 ibs

Manuals & Downloads

KL-2200
