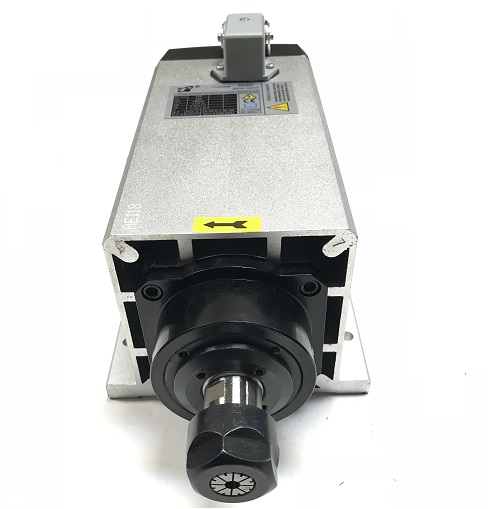

3.5KW Air Cooled Square Spindle
Air-COOLING HIGH SPEED HIGH PRECISION SPINDLE
NUMERICAL ENGRAVING/GRINDING/MILLING
ER20 COLLET CHUCK
Parameter:
- Bearing C7005/P4X2, C7003/P4X2
- Power:3 KW
- Voltage: 220V
- Frequency: 300 Hz, Current : 10A,
- Speed: 0-18000 R/min
- AIR-COOLED
- ER20 collet chuck
- Runout off: less than 0.005mm
- Grease Lubrication
Find pin number:
- 1 to U
- 2 to V
- 3 to W
- 4 and 5 is not used
- about 16.5 ibs
| Volts: 220V |
| Watts: 3.5Kw |
| RPM: 18000 |
| Cooled: Air |
| Collet: ER20 |
| Frequency: 300Hz |
