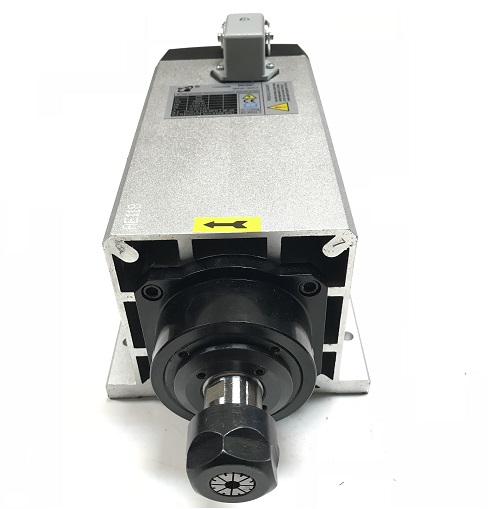

3.5KW Air Cooled Square Spindle

Air-COOLING HIGH SPEED HIGH PRECISION SPINDLE

NUMERICAL ENGRAVING/GRINDING/MILLING
ER20 COLLET CHUCK

       Parameter:

•  Bearing C7005/P4X2, C7003/P4X2
•  Power:3 KW
•  Voltage: 220V
•  Frequency: 300 Hz, Current : 10A,
•  Speed: 0-18000 R/min
•  AIR-COOLED
•  ER20 collet chuck
•  Runout off: less than 0.005mm
•  Grease Lubrication

     Find pin number:

• 1 to U
• 2 to V
• 3 to W
• 4 and 5 is not used
• about 16.5 ibs
