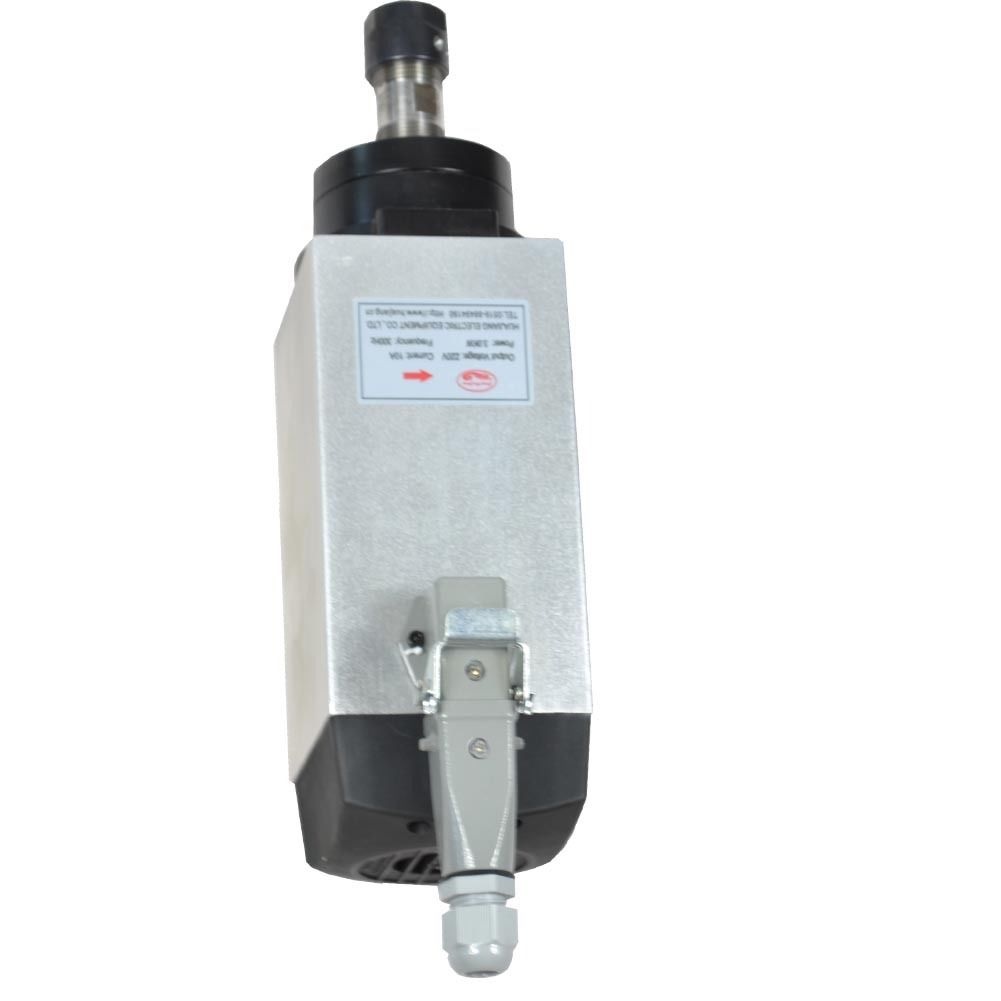

3KW Air Cooled Square Spindle

https://www.cnc4pc.com/web/image/product.template/1127/image_1920?unique=b0e5fda

Air-COOLING HIGH SPEED HIGH PRECISION SPINDLE

NUMERICAL ENGRAVING/GRINDING/MILLING
ER20 COLLET CHUCK

       Parameter:

  •  Bearing C7005/P4X2, C7003/P4X2
  •  Power:3 KW
  •  Voltage: 220V
  •  Frequency: 300 Hz, Current : 10A,
  •  Speed: 0-18000 R/min
  •  AIR-COOLED
  •  ER20 collet chuck
  •  Runout off: less than 0.005mm
  •  Grease Lubrication

     Find pin number:

  • 1 to U
  • 2 to V
  • 3 to W
  • 4 and 5 is not used
  • about 16.5 ibs

376.92 376.92 USD 376.92

Not Available For Sale

  • Watts
  • Volts
  • RPM
  • Collet
  • Cooled
  • Frequency

This combination does not exist.

Watts: 3Kw
Volts: 220V
RPM: 18000
Collet: ER20
Cooled: Air
Frequency: 300Hz
