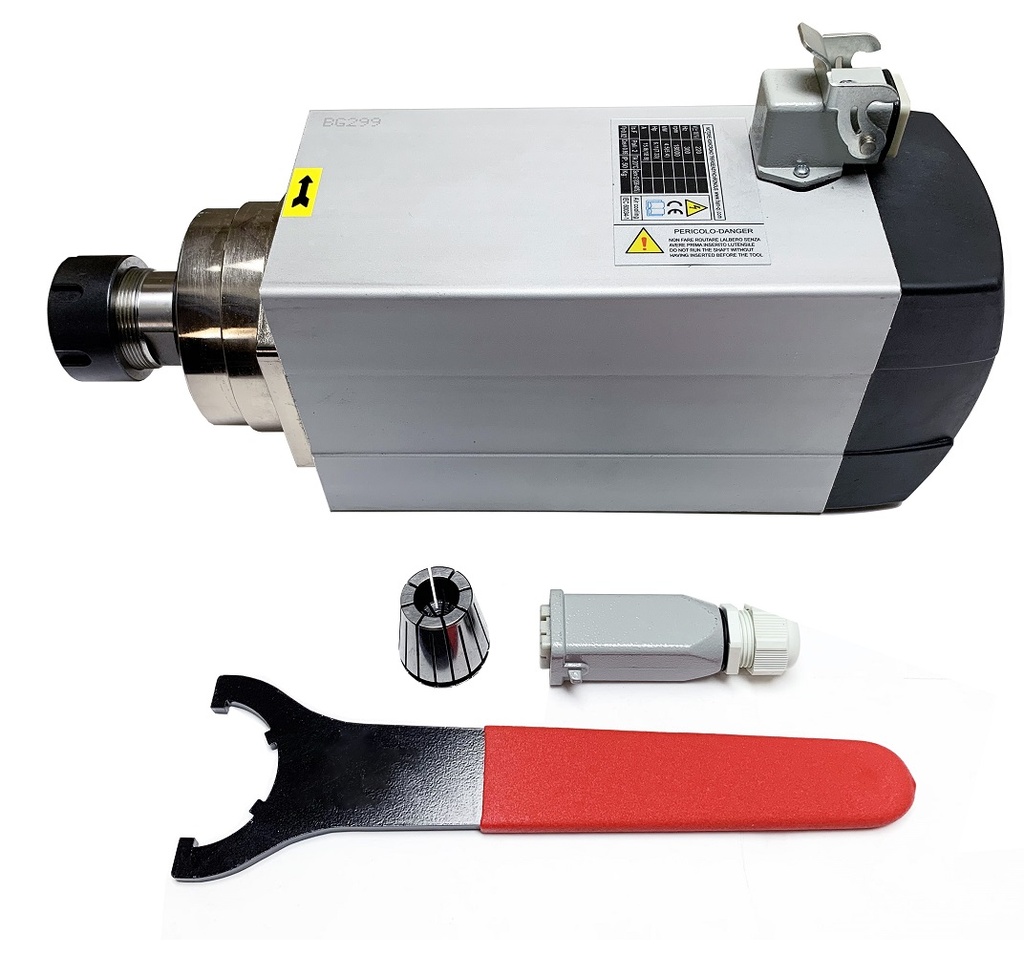

4.5KW AIR-COOLED SPINDLE
AIR-COOLING HIGH SPEED HIGH PRECISION SPINDLE
NUMERICAL ENGRAVING/GRINDING/MILLING
ER20 COLLET CHUCK
Adopt Japanese Imported Bearing
CE CERTIFICATION
FOUR BEARING
KL-4500A (23)
1)Bearing C7005/P4X2, C7003/P4X2
2) Power:4.5KW
3) Voltage: 220V, 12A
4) Frequency: 300 Hz
5) Speed: 0-18000 R/min
6) AIR- COOLED
7) ER32 collet chuck ( you can use all different size of tool 1/8, 3/16"; 7/32; 1/4"; 5/16"; 3/8"; 7/16, 1/2"; 9/16"; 5/8"; 11/16"; 3/4")
8) Runout off: less than 0.005mm
9) Grease Lubrication
Find PIN:
1 to U
2 to V
3 to W
4 and 5 is not used
about 20 LBS
