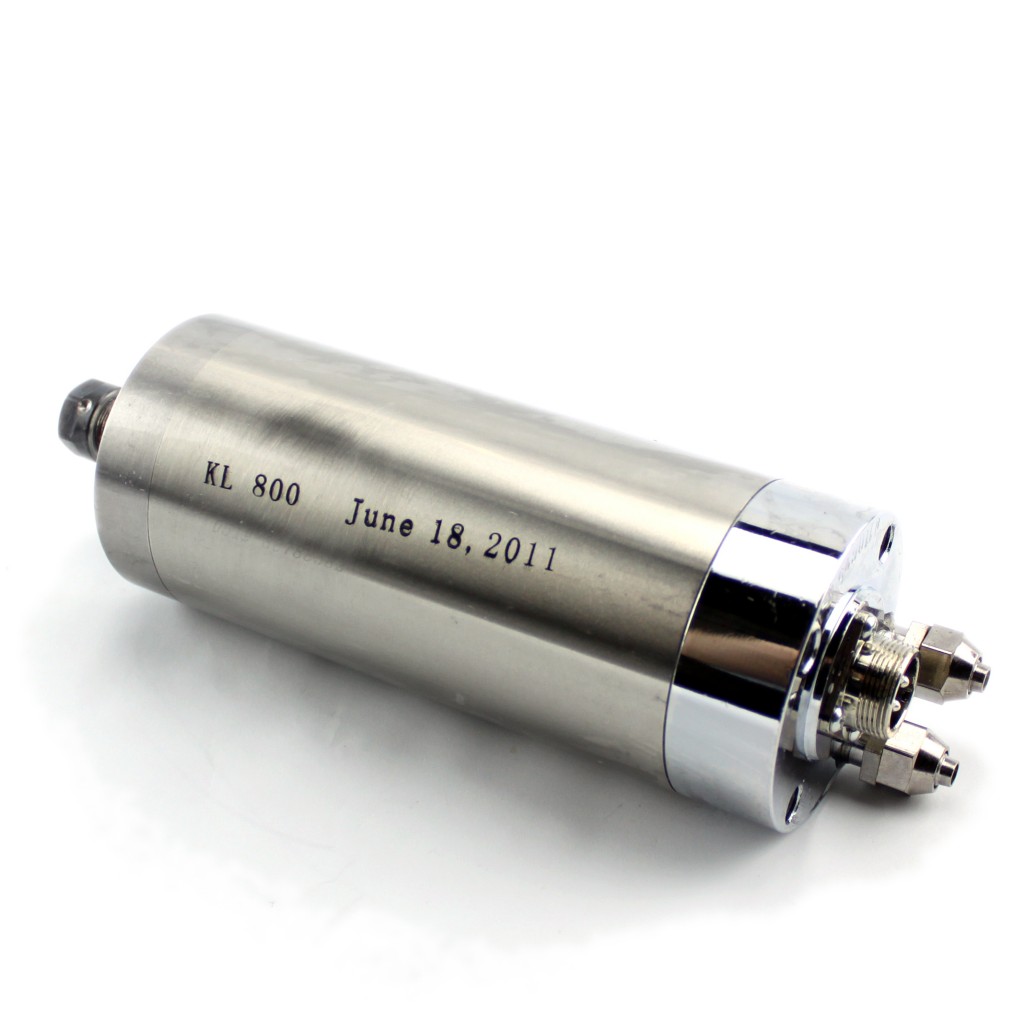

800W 1HP CNC Water Cooled Milling Spindle with ER11 Chuck

This water cooled 800 watt CNC spindle is small enough for light machines, but powerful enough to get the job done. With an 8000-24000 RPM range, ER11 collet chuck, and runout of less than0.005mm, the KL-800 spindle is ideal for PCB drilling, light routing, and other similar applications

OD = 65mm x 160mm, Voltage: 220V

Speed: 8000-24000 R/min

Power: 800 W (1HP), Frequency: 400 Hz

Water Cooling, ER11 collet chuck

( used for tool size 1/32", 1/16", 3/32", 1/8", 3/16",7/32", 1/4", tool is not included)

Grease Lubrication,

Runout of less than 0.005mm

WT about: 8 ibs

Water cooling about  20-26 gal/h

6 month warranty
