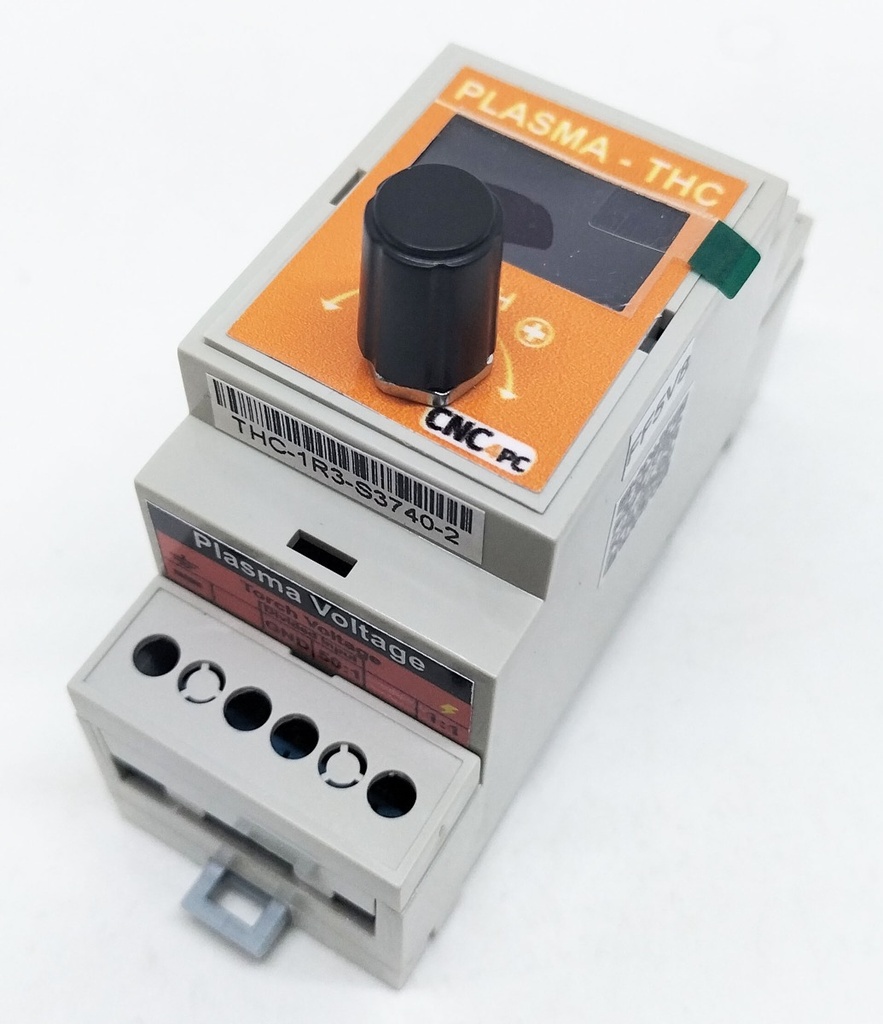

THC-1 Plasma Torch Height Control

OVERVIEW

This module allows you to control the height of your plasma cutting machine, it supports direct the input of the torch or analog input of 0-10vdc, its THC ON, UP and DOWN outputs are insulated.

FEATURES

opt isolated output working at 5 to 24VDC or open collector
Built-in Voltage Divider for connecting to the voltage on the torch or can use the 0-
10vdc from a voltage divider from the plasma.
LCD Screen
10 to 30VDC Terminal power
Din rail mountable

Note: This unit is not compatible with High-Frequency Plasma Cutters.
