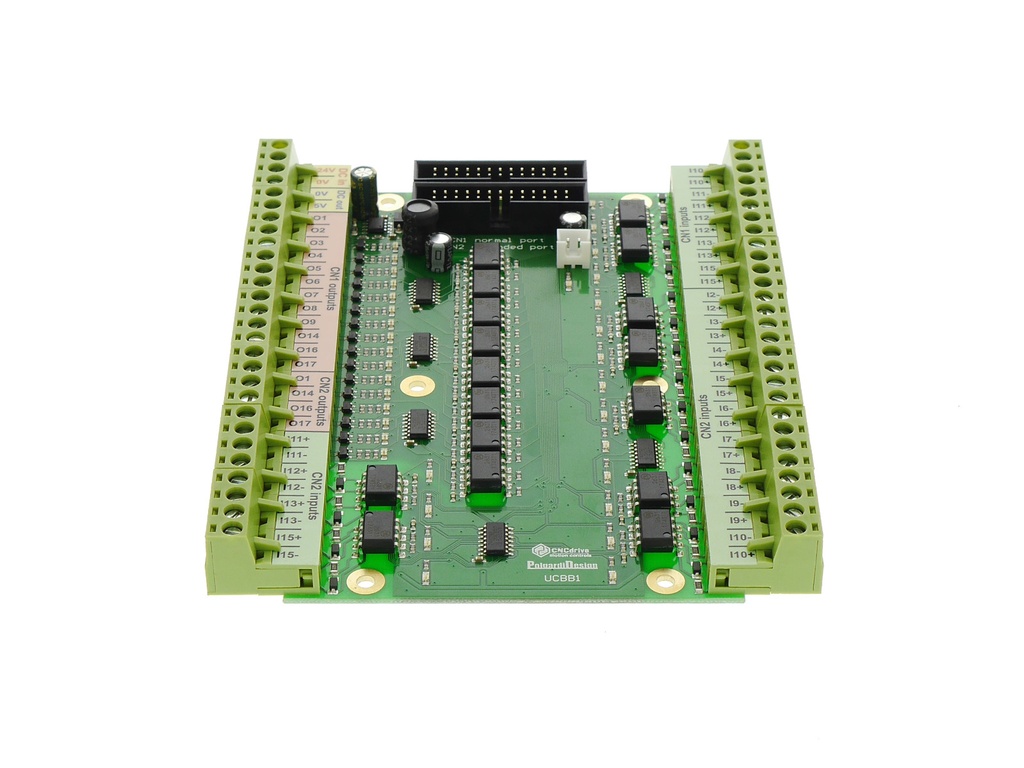

UCBB dual port breakout board
Features:
- 2x IDC26 ports with LPT port pinout.
- One standard LPT port and one input type LPT port.
- 16 outputs and 18 inputs.
- All I/Os optical isolated with high speed 10Mbit/sec optocouplers.
- Open-drain Mosfet outputs for external relay control.
- Pluggable screw terminals.
- LED indicators on all I/Os.
- 24V capable I/Os.
The UCBB breakout board is compatible with the UC300ETH-5LPT motion controller. It is not compatible with the UC400ETH controller!!!
