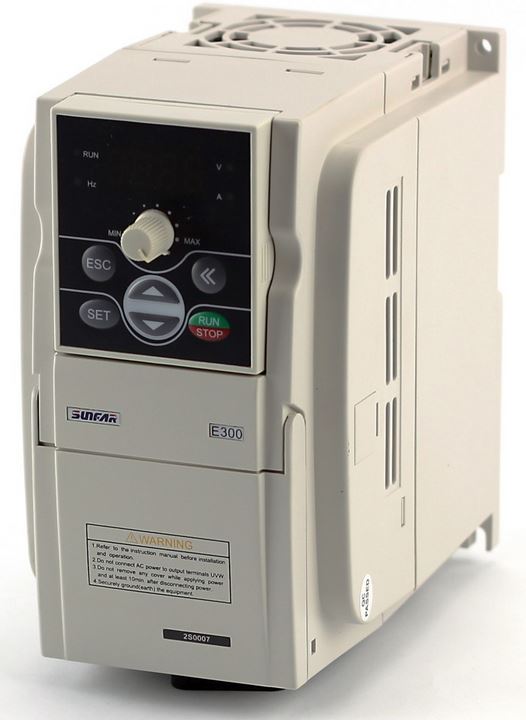

VFD03 Mini-type Integrated Universal Inverter (VFD), 2.2KW

E300 Series Mini-type Integrated Universal Inverter is an extremely compact AC drive for machine makers in the power range from 0.25 kW to 3.7 kW.Its architectural construction allows easy integration into environments of all kinds of light industry like textile, transmission etc. Up to 1000 Hz output frequency is suitable for various high speed applications, such as mill, engraving machine, centrifuge etc.

Model Number: E300-2S0022L
Power: 2.2KW
Size:270*160*215mm
Input Voltage:170-270V
Output Current:10A
Output Voltage:220V
Output Frequency:0-1000HZ
Output Power:2.2KW
Type:Other
Rated capacity:3.8KVA
Rated output current:10A
Control mode:V/F control
Running:low noise running

F0.0 = 4 (or 3 if you want to test using the knob on the VFD)
F1.7=1
F0.2=1001 (or 1000 if you want to test using the knob on VFD)
F1.8=2
F0.4= 400 or 1000 set according your spindle
F1.9=3
F0.5=10
F0.6=10
F0.11=0
F0.12=400 or 1000 set according your spindle
F0.13=220
F1.3=400 or 1000 set according your spindle
one year manufacture warranty
