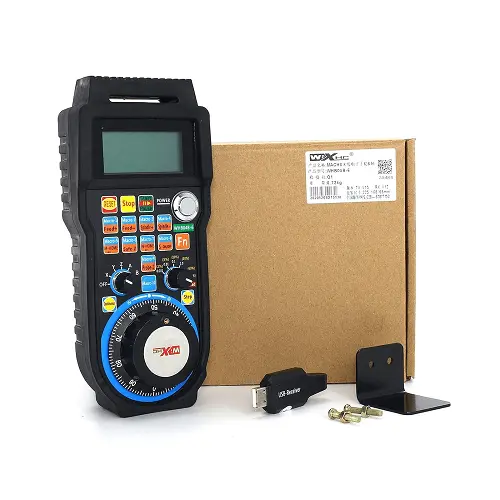

CNC Handwheel MPG (Wireless ) WHB04B-4 for Mach3 Controller, 4 Axis ( X, Y, Z, A)

Description:

• Features:
• - Adopt frequency hopping transmission, strong anti-interference ability
• - Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
• - With 32 frequency hopping channels, each channel interval 1MHZ.
• - Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code .
• - Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other
• - LCD display
• - Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.
• - Show the spindle speed, the value of the feed rate.
• - Dot matrix LCD with backlight
• - Axis selection, power band switch control
• - Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control
• - The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
• Application:
• For Windows: All Mach3 CNC
• Parameter:
• - Communication channel: ISM, 433MHZ
• - Power: 2* AA alkaline batteries
• - Wireless transmission range: 40 meters without obstacle
• - Encoder: 100PPR
• - Button: 13
• - Transmit power: 10DB
• - Acceptance sensitivity: -98DB
• - Maximum axis: 4 axis
• - Display screen: dot matrix LCD backlight display screen
• - Material: PC and ABS material, good resistance to heat and toughness, and a silicone sleeve protection
• Using Warning:
• In order to signal stability of the receiver to be installed outside the chassis.
• Using the step:
• 1. Insert the USB receiver, wait for the automatic driver installation is completed.
• 2. The driver(in the CD inside) XHC-ShuttlePro.doll copies to /Mach3/PlugIns.
• 3. The all macro files(in the CD inside macro folder)copied to /Mach3/macro/under Mach3Mill.
• 4. Wireless MPG, install 2AA batteries, turn on the power switch.
• Explanation:
• 1. Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.
• 2. Speed Indicator:
• when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.
• 3. Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.
